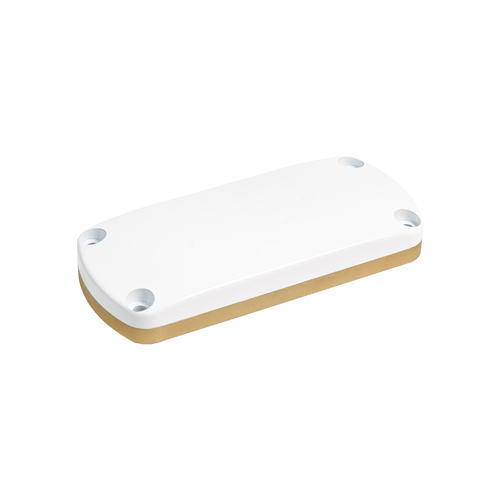

Dual Channel Iridium/GPS Antenna | 27dB, TNC, White


LATITUDE TECHNOLOGIES

Call For Pricing
Available to order
EDMO # S5GIR1516R
MFR Part # S5GIR1516RR-AVP-XTT-1
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The S5GIR15161RR-A2P-XTT-1, L1 GPS and Iridium Antenna is intended for land/mobile and airborne applications and will work with both voice and data communication systems. This antenna provides excellent coverage in the 1616.0 to 1626.5 MHz range and L1 GPS 1575.42 ±13 MHz, with or without ground plane.

Features

  • 27dB
  • Iridium 1610.0 - 1626.5 MHz frequencies
  • L1 GPS L1 1562.42 – 1588.42 MHz frequencies
  • Dual channel
  • RHCP polarization
  • Hemispherical radiation pattern

Also Purchased

Specifications

  • Weight:
    8.3 oz
  • Dimensions:
    5.026 x 2.20 x 0.721
  • Finish:
    Skydrol resistant polyurethane enamel and nickel plating
  • Material:
    6061-T6 aluminum alloy base, composite radome
  • Connector:
    TNC
  • VSWR:
    1.5:1
  • Radiation pattern:
    Hemispherical
  • Polarization:
    RHCP
  • Iridium frequency:
    1610.0 - 1626.5 MHz
  • GPS frequency:
    L1 1562.42 – 1588.42 MHz

Related Products

Product Codes

  • Mfr Part No
    S5GIR1516RR-AVP-XTT-1
