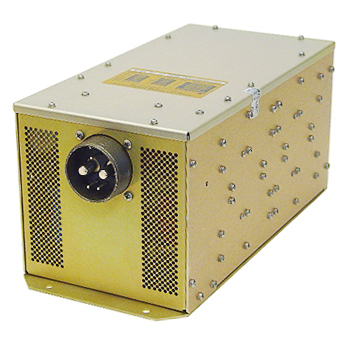

Static Inverter | 230V, 50 Hz, Sine Wave, Lightweight

Static Inverter | 230V, 50 Hz, Sine Wave, Lightweight

K G S ELECTRONICS

EDMO#: SB200

MFR#: SB200

Description

The SB200 static inverter uses solid state circuitry to invert a 28 VDC input to 230 VAC, 50 Hz sine wave output. Designed with a crystal-controlled oscillator for output frequency stability and a pulse width modulated square to sine wave power conversion scheme for efficient and reliable operation. The SB200 inverter provides power for laptop computers, audio/video entertainment systems, portable electronics (stereo, MP3, CD, DVD, video games, etc.), microwave ovens, coffee makers, and medical equipment in airborne, marine, and ground mobile applications.

Features

  • Crystal-controlled oscillator
  • Pulse-width-modulated
  • Square to sin wave power conversion scheme
  • Efficient and reliable operation
  • Output frequency stability
  • Remote On/Off

Specifications

Weight:
17.7 lb

Dimensions:
6.51 x 14 x 6.23 in

Input voltage:
28 Vdc (nominal), 20 Vdc to 36.5 Vdc Range

Input current:
2.0 Adc (nominal) at NL; 83 Adc (nominal) at FL (2Kva) at 28 Vdc

Output voltage:
230 VAC (215 TO 240 VAC)

Output frequency:
50 Hz

Output current:
8.7 Amps RMS

Output wave form:
Sine

Harmonic distortion:
0.5 % (nominal)

Power factor:
+0.8 TO -0.8

Output phase:
Single

Efficiency:
87% (nominal)

Response time:
300 uSec (No Load to Full Load)

Regulation:
1 % Line, 1 % Load, 2.5 % Temperature

Operating temperature:
-55 ° C to +71 ° C (-65 ° F to +160 ° F)

Altitude:
55,000 ft

Cooling:
Thermostatically controlled brushless fan (on above 50 ° C)

Product Codes

Mfr Part No :

SB200

ECCN :

3A225

SCHEDULE B CODE :

8504.40.0040

Notice: EDMO Distributors, Inc. has made every effort to verify the accuracy of the codes, classifications, and part approvals listed in accordance with the Department of Commerce, U.S. Census Bureau, Bureau of Industry and Security, U.S. Department of Defense and Federal Aviation Administration. EDMO Distributors, Inc. does not assume responsibility for errors or omissions. This listing is subject to change without notice.

Warning to Exporters: EDMO Distributors, Inc. does not assume responsibility for errors with any of the Schedule B Commodity Codes or Export Control Classification Numbers in this listing. It is the Exporter's responsibility to research and supply the correct codes and classifications for the product to be exported. Some products may require an Export License in order to be exported.
