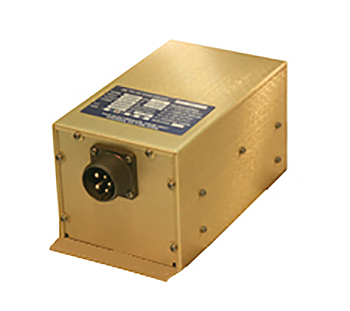

E/L PANEL INVERTER/350 VA, 115 VAC, 400 Hz

K G S ELECTRONICS

Call For Pricing

Available to order

EDMO # SD35

MFR Part # SD35

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The SD35 is a pulse width modulated DC to AC converter that provides regulated 0 to 115 Vac power up to 3.04 amperes for EL panel lighting. The SD35 will power approximately 2000 in_ to 2600 in_ area of a EL panel.

The output voltage is varied by a slider voltage 0-5 Vdc applied at pin F from a remote control potentiometer 5K ohm 1/2 watt to ground or directly from a 0-5 Vdc source.

An internal trim pot is provided to adjust the output voltage 10% at its full clockwise position of the external pot.

Circuit protection includes low input voltage shutdown, soft start, high input voltage shutdown, output over voltage limit and output short circuit current limit
