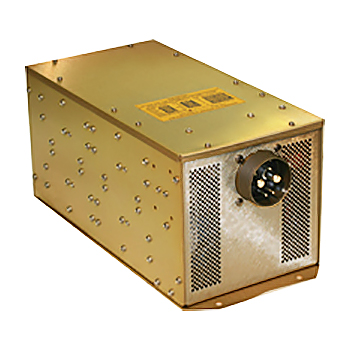

Static Inverter | 400 Hz, 3-Phase, 28VDC to 115VAC

Product Description

The SEA 150 400Hz sine wave static inverter is primarily designed for military, ground and airborne instruments including compasses, gyros, radar and navigation equipment. Solid state circuitry inverts a 28 VDC to 115/200 VAC output. The SEA150 is a lightweight, 400Hz 3 phase static inverter.

Specifications

• Weight:
  15.7 lb
• Dimensions:
  6.51 x 14 x 6.23 in
• Power:
  1500 VA
• Output:
  115 Vac line to neutral, 200 Vac line to line
• Current:
  1.5 Adc nominal at NL; 63 Adc at 1.5 KVA at 28 Vdc
• Frequency:
  400 Hz
• Phase and wave form:
  Three phase, sinewave
• Harmonic distortion:
  2.5% nominal
• Operating temperature:
  -55 ° C to +71 ° C (-65 ° F to +160 ° F)
• Altitude:
  55,000 ft
• Compliance:
  FAA TSO-C73

Product Codes

• Mfr Part No
  SEA150
• ECCN
  3A225
• SCHEDULE B CODE
  8504.40.0040
• TSO
  C73
