SPC10 Series 400Hz Static Inverter | 250VA, DC ground, AC return, Remote On/Off, Phase Lock, On/Off Return

Product Description

The SPC-10 static inverter utilizes solid state circuitry to convert 28 VDC to 115/26 VAC, 400 Hz sine wave power. Design features include pulse-width modulated square to sine wave power conversion permitting lightweight and reliable operation. Capable of delivering an overload of 150% of rated current for a duration not less than five minutes under all environmental conditions.

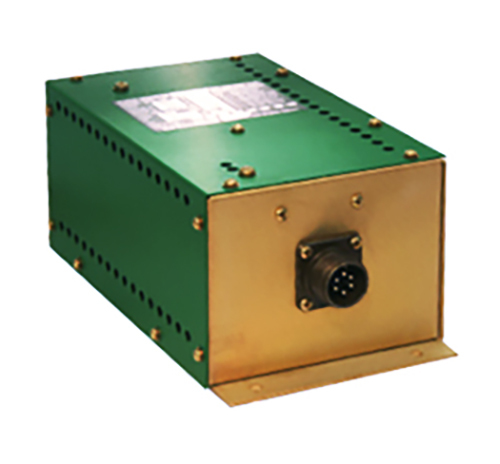

SPC-10(F) features DC ground, AC return, Remote On/Off, Phase Lock, On/Off Return. MS3106B20-16S mate.

Specifications

• Weight:
  5.5 lb
• Dimensions:
  4.45 x 8.25 x 3.45 in overall
• Input voltage:
  24 to 32 VDC
• Input current:
  10.6 A
• Output power:
  250 VA
• Output voltage:
  115 VAC and / or 26 VAC
• Efficiency:
  82% min.
• Phase:
  Single
• Waveform:
  Sine wave
• Frequency:
  400 Hz ± 1%
• Amplitude distortion:
  Less than 7% (3% Typ.)
• Power factor:
  0.8 to -0.95
• Altitude:
  55,000 ft
• Temperature:
  -65°F to +160°F (-55°C to +71°C)
• Humidity:
  Tested to greater than 95% for 10 days, temperature was cycled between 75°F to 160°F
• Environmental:
  Qualified to meet RTCA paper D0-160 Env. Cat. D2BR--
• Input overvoltage:
  Operate up to 37 VDC input while supplying full rated VA output power. Output voltage under this condition is 115 VAC +5%, 7%.
• Input transient protection:
  Withstands without damage or degradation load exceeding 150% of rated output to an output dead short.Inverter delivers rated output on removal of above conditions.

Product Codes

• Mfr Part No
  SPC-10(F)
• ECCN
  3A999
• SCHEDULE B CODE
  8504.40.0040
• TSO
  C73
