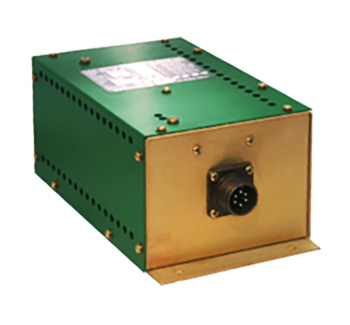

SPC10 Series 400Hz Static Inverter | 100VA, DC ground, AC return

K G S ELECTRONICS

Call For Pricing

Available to order

EDMO # SPC-10W

MFR Part # SPC-10W

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The SPC-10W static inverter utilizes solid state circuitry to convert 28 VDC to 115 VAC, 400 Hz sine wave power. Design features include pulse-width modulated square to sine wave power conversion permitting lightweight and reliable operation. This unit is capable of delivering an overload of 150% of rated current for a duration not less than five minutes under all environmental conditions.

SPC-10W features DC ground, AC return.

Features

The SPC-10W pin designation:
(A) 28 VDC input
(B) DC ground
(C) AC return
(D) 115 VAC output
(E) No connection
(F) 26 VAC output
Features:
Solid state circuitry
400 Hz sine wave power
Pulse-width modulated square to sine wave conversion
Lightweight and reliable operation
150% overload of rated current

Specifications

Weight:

5.2 lb
Dimensions:

4.45 x 8.25 x 3.45 in overall
Input voltage:

22 to 32 VDC
Input current:

4.8 A
Output power:

100 VA
Output voltage:

115 VAC and / or 26 VAC
Efficiency:

75 to 78%
Phase:

Single
Waveform:

Sine wave
Frequency:

400 Hz ± 1%
Amplitude distortion:

Less than 7% (3% Typ.)
Power factor:

0.8 to -0.95
Altitude:

55,000 ft
Temperature:

-65°F to +160°F (-55°C to +71°C)
Humidity:

Tested to greater than 95% for 10 days, temperature was cycled between 75°F to 160°F
Environmental:

Qualified to meet RTCA paper D0-160 Env. Cat. D2BR--
Input overvoltage:

Operate up to 37 VDC input while supplying full rated VA output power. Output voltage under this condition is 115 VAC +5%, 7%.
Input transient protection:

Withstands without damage or degradation load exceeding 150% of rated output to an output dead short. Inverter delivers rated output on removal of above conditions.
