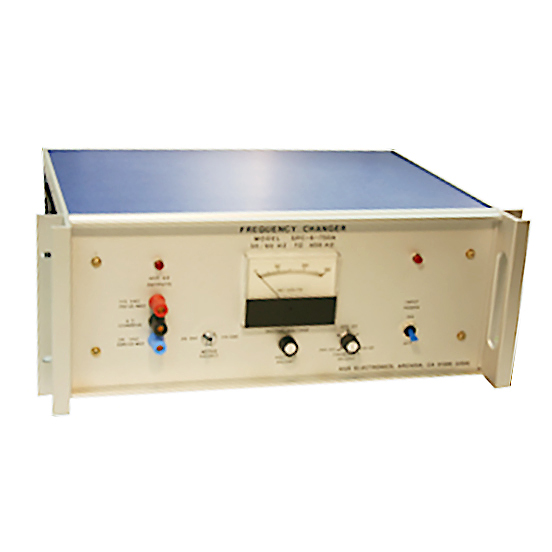

Frequency Changer | 750 VA, 60–400 Hz

Product Description

The SPC6-750A solid state frequency changer that converts 115 VAC 50/60 Hz to single phase 115 VAC 400 Hz sine wave power. The SPC6-750A is designed for use on avionic test benches to power radars, compasses, gyros, HSI's and to add 400Hz power to flight simulator systems.

Specifications

• Weight:
  32 lb
• Input Voltage:
  115 VAC ±15 VAC
• Input Frequency:
  50/60 Hz
• Input Phase:
  Single
• Specification
  Protected from input overvoltage (unit will shut itself off above 135 VAC) Protected from over current with 15 amp circuit breaker. This circuit breaker is also used for the input power on-off switch
• Output Voltage:
  115 VAC (100 to 125VAC adjustable) 26 VAC (22.6 to 28.2VAC adjustable)
• Output Power:
  115 VAC out . 750 VA 26 VAC out . 500 VA Total output power 750 VA
• Output Frequency:
  400 Hz (380 to 420 Hz adjustable)
• Phase:
  Single
• Wave:
  Sine
• Amplitude Distortion:
  2% Typical
• Power Factor:
  0.8 — 0.95
• Temperature:
  -40°C to 71 °C

Product Codes

• Mfr Part No
  SPC6-750A
• ECCN
  3A225
• SCHEDULE B CODE
  8504.40.0040
• TSO
  C73
