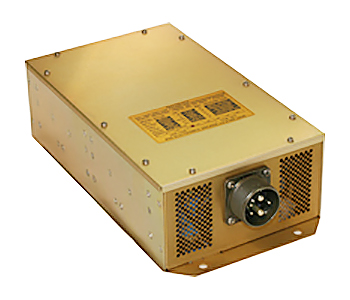

SS120C Static Inverter | 115V, 60Hz, 1200VA, Sine Wave, Lightweight

K G S ELECTRONICS

Call For Pricing

Available to order

EDMO # SS120C

MFR Part # SS120(C)

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The SS120 static inverter uses solid state circuitry to invert a 1200VA 28 VDC input to 115 VAC, 60 Hz sine wave output. Designed with a crystal-controlled oscillator for output frequency stability and a pulse width modulated square to sine wave power conversion scheme for efficient and reliable operation. The SS120 inverter provides power for laptop computers, audio/video entertainment systems, portable electronics (stereo, MP3, CD, DVD, video games, etc.), microwave ovens, coffee makers, and medical equipment in airborne, marine, and ground mobile applications.

The SS120C remote ON/OFF is configured (Open = ON; Ground = OFF), with different IN/OUT connector than SS120.

Features

Crystal-controlled oscillator
Pulse-width-modulated
Square to sin wave power conversion scheme
Efficient and reliable operation
Output frequency stability
Remote On/Off

Specifications

Specification

Weight: 7.7 lb
Specification

Dimensions: 6.34 x 9.5 x 3.4 in
Specification

Input voltage: 28 Vdc (nominal), 20 Vdc to 36.5 Vdc Range
Specification

Input current: 50 ADC (nominal) at FL (1200VA & 28 Vdc Input) .5 ADC (nominal) at No Load
Specification

Output voltage: 115 VAC (108 TO 120 VAC)
Specification

Output frequency: 60 Hz
Specification

Output current: 10.3 AAC
Output power:

1200 VA
Specification

Output wave form: Sine
Specification

Harmonic distortion: 0.5 % (nominal)
Specification

Power factor: +0.8 TO -0.8
Specification

Output phase: Single
Specification

Efficiency: 87% (nominal)
Specification

Response time: 300 uSec (No Load to Full Load)
Specification

Regulation: 1 % Line, 1 % Load, 2.5 % Temperature
Specification

Operating temperature: -55 ° C to +71 ° C (-65 ° F to +160 ° F)
Specification

Altitude: 55,000 ft
Specification

Cooling: Thermostatically controlled brushless fan (on above 50 ° C)
