Static Inverter | 115V, 60Hz, 2KVA, Sine Wave, Lightweight

Product Description

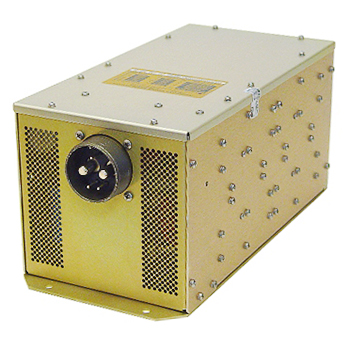

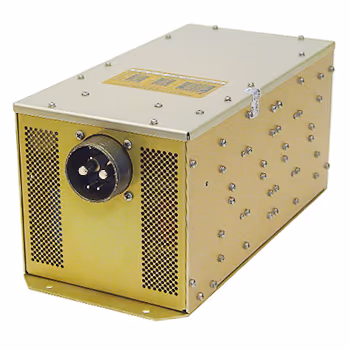

The SS200 static inverter uses solid state circuitry to invert a 2 KVA 28 VDC input to 115 VAC, 60 Hz, sine wave output. Designed with a crystal-controlled oscillator for output frequency stability and a pulse width modulated square to sine wave power conversion scheme for efficient and reliable operation. The SS200 inverter provides power for laptop computers, audio/video entertainment systems, portable electronics (stereo, MP3, CD, DVD, video games, etc.), microwave ovens, coffee makers, and medical equipment in airborne, marine, and ground mobile applications.

Specifications

• Weight:
  17.7 lb
• Dimensions:
  6.51 x 14 x 6.23 in
• Input voltage:
  28 Vdc (nominal), 20 Vdc to 36.5 Vdc Range
• Input current:
  2.0 Adc (nominal) at NL; 83 Adc (nominal) at FL (2Kva) at 28 Vdc
• Output voltage:
  115 VAC (108 TO 120 VAC)
• Output frequency:
  60 Hz
• Output current:
  17.4 Amps RMS
• Output wave form:
  Sine
• Harmonic distortion:
  0.5 % (nominal)
• Power factor:
  +0.8 TO -0.8
• Output phase:
  Single
• Efficiency:
  87% (nominal)
• Response time:
  300 uSec (No Load to Full Load)
• Regulation:
  1 % Line, 1 % Load, 2.5 % Temperature
• Operating temperature:
  -55 ° C to +71 ° C (-65 ° F to +160 ° F)
• Altitude:
  55,000 ft
• Cooling:
  Thermostatically controlled brushless fan (on above 50 ° C)

Product Codes

• Mfr Part No
  SS200D
