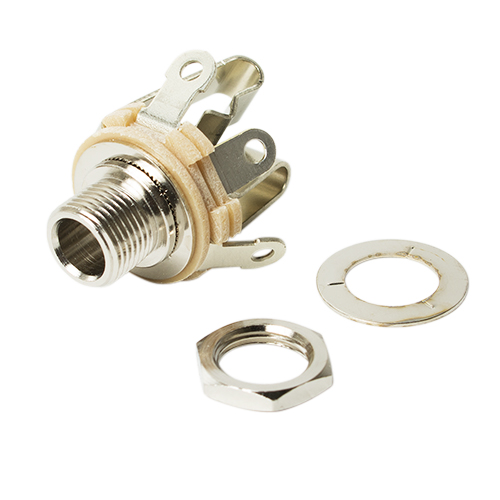

STEREO HEADPHONE JACK/ 1/4 Inside Diameter, includes metal washer and nut.


SWITCHCRAFT

EDMO#: SWC 12B

MFR#: 12B

Description

Switchcraft 1/4-inch, 3-circuit stereo open frame jacks mate with standard commercial phone plugs.



This 1/4-inch open frame jack (EDMO# SWC 12B) has a 3-circuit stereo plug and 0.25 inch jack inside diameter. Supplied with one hex nut and one copper alloy washer.

Features

  • Nickel-plated mounting brushing
  • Rigid plastic Insulation
  • Copper alloy springs
  • Copper alloy terminal

Specifications

Width:
0.75 in

Mounting Depth:
1 in

Plug Diameter:
0.210 in

Insertion Force:
7 lb (commercial plug)

Withdrawal Force:
1 lb (commercial plug)

Contact Resistance:
0.030Ω, maximum

Insolation Resistance:
10,000 MΩ

Dielectric withstanding Voltage:
500V, 60 Hz (rms) AC

Contact Rating:
1A, 25 VDC

Product Codes

Mfr Part No :

12B

ECCN :

EAR99

SCHEDULE B CODE :

8536.69.4030
