1/4-inch Jack Cover | Black


SWITCHCRAFT

Call For Pricing
In stock
EDMO # SWC 515X
MFR Part # 515X
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

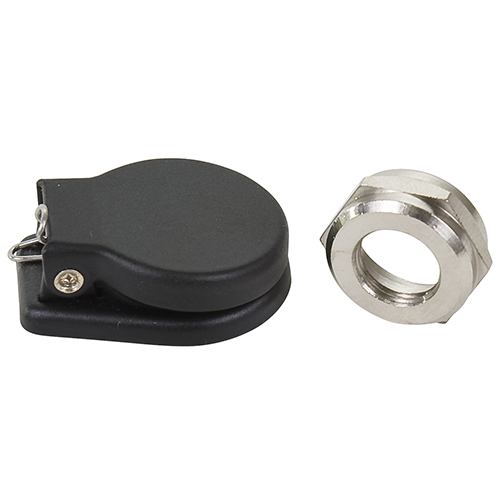

Switchcraft 1/4-inch jack covers provide an effective seal for headphone and microphone jacks. The spring-loaded cover keeps jack openings free from dust and dirt when mating plugs are not connected. The 500 series jack covers are a mounted with conventional threaded bushing jacks while a special locknut seals tightly against the rubber washer when closed.

Features

  • This 1/4 inch jack cover (EDMO# SWC 515X) is colored black.
  • Semi-gloss, polyester power coated base and cover
  • Stainless steel passivated spring
  • Nickel-plated, copper alloy Hex nut
  • Synthetic rubber gasket
  • RoHS Compliant

Specifications

  • Dimensions:
    1.13 x 0.88 x 0.44 in
  • Cover and Base Material:
    steel
  • Finish:
    semi-gloss black, polyester power coat
  • Gasket Material:
    synthetic rubber
  • Torsion Spring Material:
    stainless steel
  • Axle Material:
    nickel-plated, copper alloy
  • Nut Material:
    Nickel-plated copper alloy

Related Products

Product Codes

  • Mfr Part No
    515X
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.69.0000
