1/4-inch Extension Jack | 2-Connector, Solder Terminal, Mono

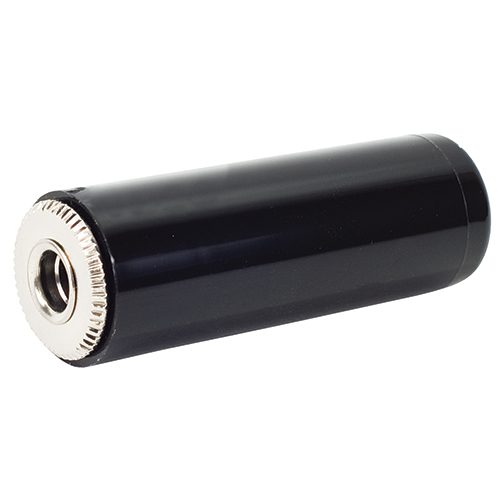

1/4-inch Extension Jack | 2-Conductor, Solder Terminal, Black

SWITCHCRAFT

Call For Pricing

Available to order

EDMO # SWC 88

MFR Part # 88

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Extension Jax® jacks connect 2- or 3-connecter cable ends to standard commercial phone plugs. These jacks feature a sturdy clamp strain relief, knurled shielded nut or black plastic handles, and a screw-type or solder terminal.

The SWC 88 1/4-inch female cable jack (EDMO# SWC 88) has a 2-connector mono jack, solder lugs, and a black handle. Mates with Switchcraft 250 1/4-inch mono, 2-connector cable mount plug.

Features

Body, sleeve and shielded handle with nickel-plated copper alloy flange
Molded thermoplastic black handles
Copper alloy springs
Phenolic & Mylar insolation
Tin-plated clamp terminals
RoHS compliant

Specifications

Dimensions:

2.156 x 0.75 in, Max.
Number of Conductors:

2
Termination:

solder
Materials:

copper alloy & nickel plated (bushing & flange) copper alloy (spring) copper alloy, tin-plated (clamp terminal) phenolic & mylar (insulators) black thermoplastic (handle)
RoHS compliant
