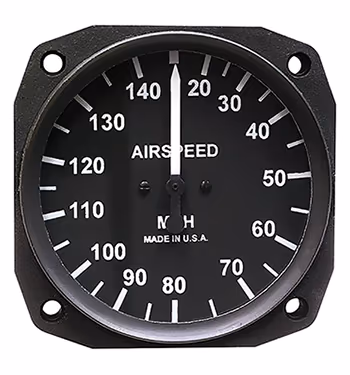

UMA Airspeed Indicator | 20 – 140 MPH, 3-1/8 in, TSO, Black & White Dial

UMA Airspeed Indicator | 20 – 140 MPH, 3-1/8 in, TSO, Black & White Dial

UMA INSTRUMENTS

EDMO#: T16-310141

MFR#: T16-310-141

Description

UMA T16-31X-XXX series airspeed indicators are direct reading and self-contained units that connect directly connect to the aircraft pitot and static system. They are built to meet or exceed AS 8019 standards as per TSO-C2d.

Features

This airspeed indicator (EDMO# T16-310141):

  • 20 mph — 140 mph range
  • 3-1/8 inch mounting hole
  • Black & white dial
  • TSO certified

Specifications

Weight:
8.6 oz (3-1/8 in)

Dimensions:
3.55 x 3.125 in, max (3-1/8 in)

Operating Temperature:
-20°C to 55°C, normal

Lines (size):
1/4 in (wall thickness: 0.028–0.035 in)

Friction/Position Error:
±4 from 20 mph – 200 mph
±6 from 210 mph – 350 mph

Scale Error:
±5 from 20 – 60MPH
±4 from 70 – 90 MPH
±3 from 100 – 180 MPH
±6 from 200 – 400 MPH

Case:
Meets F.A.A. Spec. # FR 25.853
Material: G.E. Valox 420 SEO.

Appearance:
Case, Bezel and dial background are matte black
Identification lettering is Blue
Markings are matte white
Pointer is matte white with black hub and counterweight

Product Codes

Mfr Part No :

T16-310-141

ECCN :

7A994

SCHEDULE B CODE :

9014.20.8040

TSO :

C2d

Documentation
