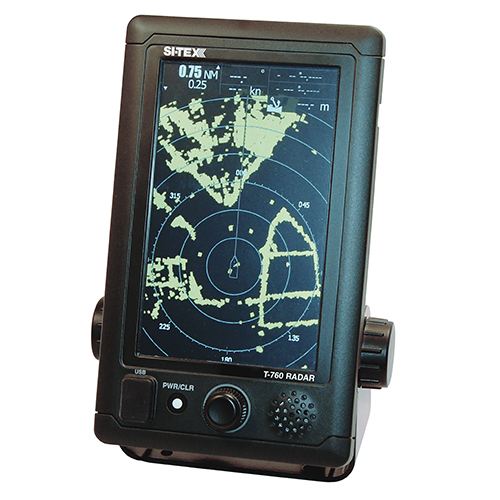

T-760 Touch Screen Color Radar | 4kW Radar, 18in Radome Antenna
Si-Tex
EDMO#: T760
MFR#: T-760
Description
The T-760 is a Marine Radar featuring a seven-inch, color touch screen that brings brings advanced features such as touch screen control, AIS target tracking and standard MARPA to a wider audience of cruisers, sailors and fishermen. Its compact design offers boaters versatile mounting options for installation on small or crowded consoles and helm stations. The T-760 features a 4kW transmitter and is equipped with an 18-inch compact radome antenna to provide solid performance in a wide range of conditions and range scale choices from 1/8th NM to 24 NM. The T-760 series radar has a rugged build quality to withstand harsh conditions at sea on both commercial and recreational vessels.
Features
- 7-inch color LCD display
- Intuitive touch screen/rotary dial control
- Standard 50 target AIS tracking
- Standard 10 target MARPA
- Multi-speed (16 — 48 rpm) antenna rotation for optimum performance in real-world conditions
- Features include relative motion/true motion/head-up/north-up
- Optional color RGB video output
Specifications
Antenna/Scanner:
18in radome
Output Power:
4kW (peak)
Basic Range:
0.0625 — 24 NM
Beam Width:
5.2° horizontal
25° vertical
Rotation Speeds:
16 — 48 rpm
Display Size & Type:
7in color LCD
Effective Diameter:
90 mm or more
Display Resolution:
800 x 480 pixels
Off-Centering:
2/3 radius of PPI
Presentation Modes:
relative motion, true motion, heads-up, course up
Anti Sea/Rain Clutter:
auto/manual
Trail Indicator:
Off, 15s, 30s, 1min, 2min, 6min, 10min, 15min, 30min, Cont
NMEA Input/Output:
optional color RGB video output
AIS Target Capacity:
50 target (requires AIS receiver unit)
ATA Tracking Capacity/Range:
10 target/20 NM
Target Alarms:
CPA/TCPA, New Target, Lost Target, System (Requires bearing data, ship’s speed data and latitude/ longitude data input)
Power Supply:
12VDC/24VDC — 10/+30%
Power Consumption:
Approx. 50W
Product Codes
Mfr Part No :
T-760
SCHEDULE B CODE :
9999.99.9999
