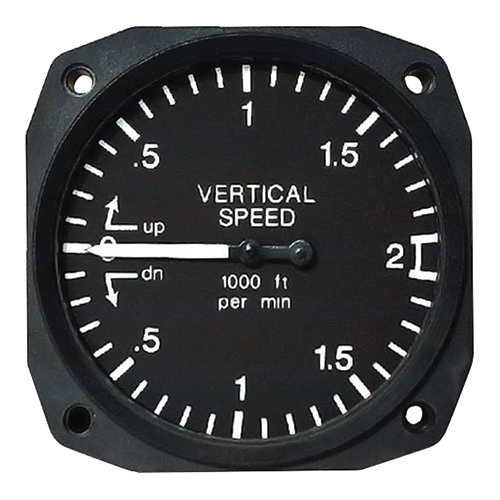

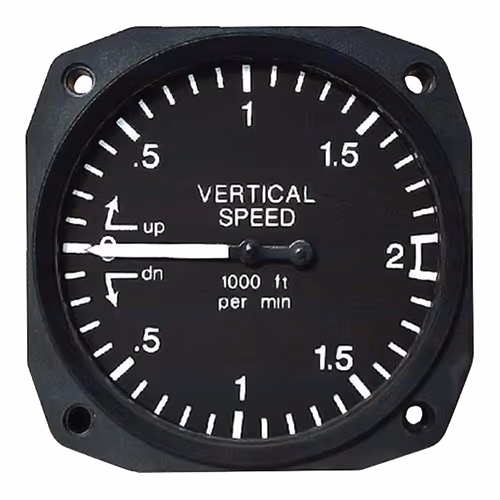

UMA Vertical Airspeed Indicator | 0 – 4000 ft/min, 2-1/4 in, B & W Dial Markings, TSO

Product Description

UMA TSO vertical airspeed indicators meets the FAA requirements of TSO C-8E specifications. These instruments make an excellent choice for installation in fixed wing aircraft with reciprocating or turbo prop engines.

This TSO vertical airspeed indicator (EDMO# T8-210-40) has a 2-1/4 inch mounting hole, 0 ft – 4,000 ft/min range, and black and white dial markings.

Specifications

• Weight:
  6.2 oz
• Dimensions:
  4.35 x 2.35 in
• Operating Temperature:
  -20°C to 55°C
• Friction/Position Error:
  ±100 ft/min
• Scale Error:
  ±100 ft/min (0 – 500 Feet) ±200 ft/min (500 – 1000 ft) ±300 ft/min (1000 – 2000 ft) ±300 ft/min (2000 – 3000 ft) ±400 ft/min (3000 – 4000 ft) ±500 ft/min (4000 – 5000 ft) ±500 ft/min (5000 – 6000 ft)
• Case:
  Meets FAA Specifications #FR 25.853 Material: G.E. Velox 420 SEO.
• Appearance:
  Case, Bezel and dial background are matte black Identification lettering is white Markings are matte white Pointer is matte white with black hub and counterweight

Product Codes

• Mfr Part No
  T8-210-40
• ECCN
  7A994
• SCHEDULE B CODE
  9014.20.8040
• TSO
  C8e
