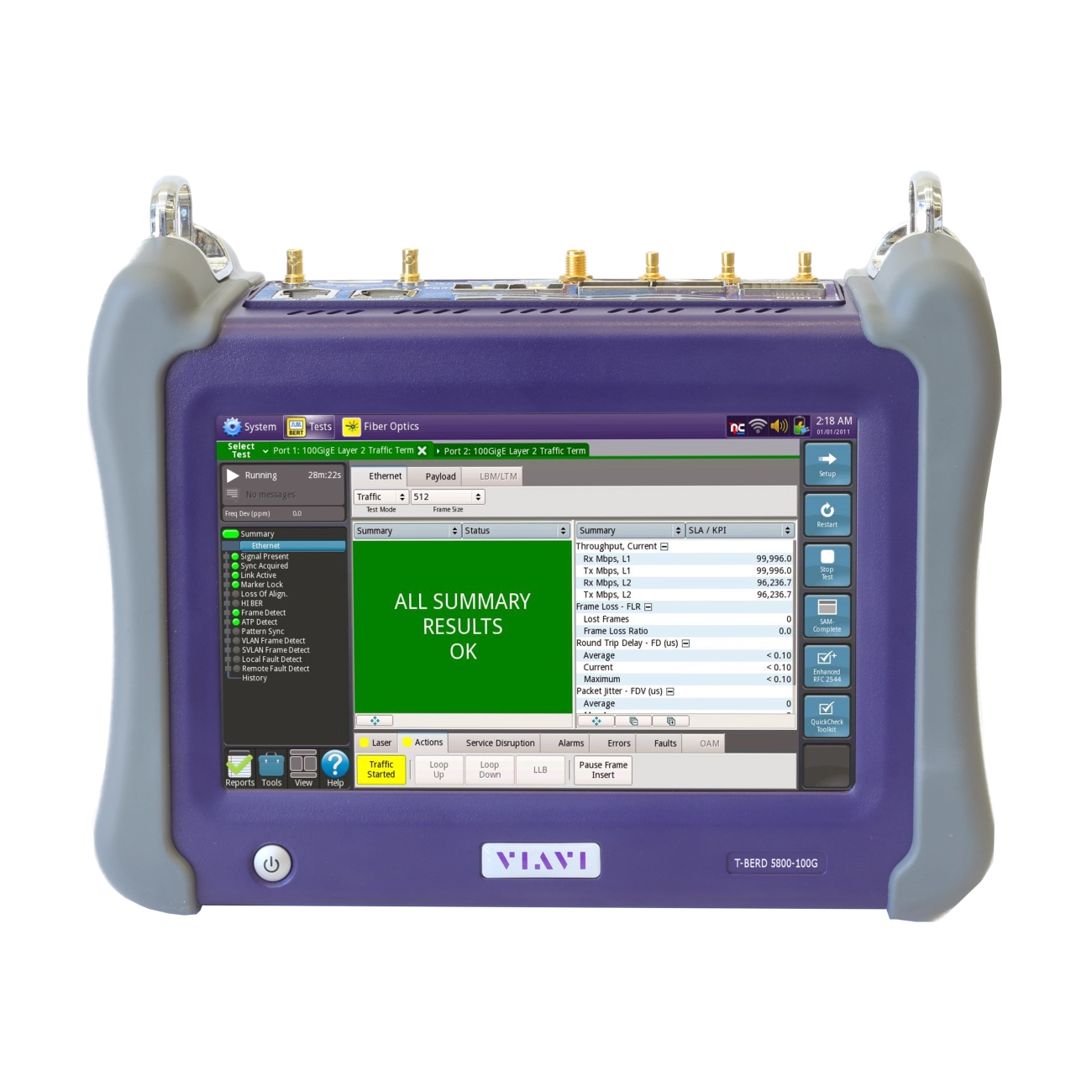

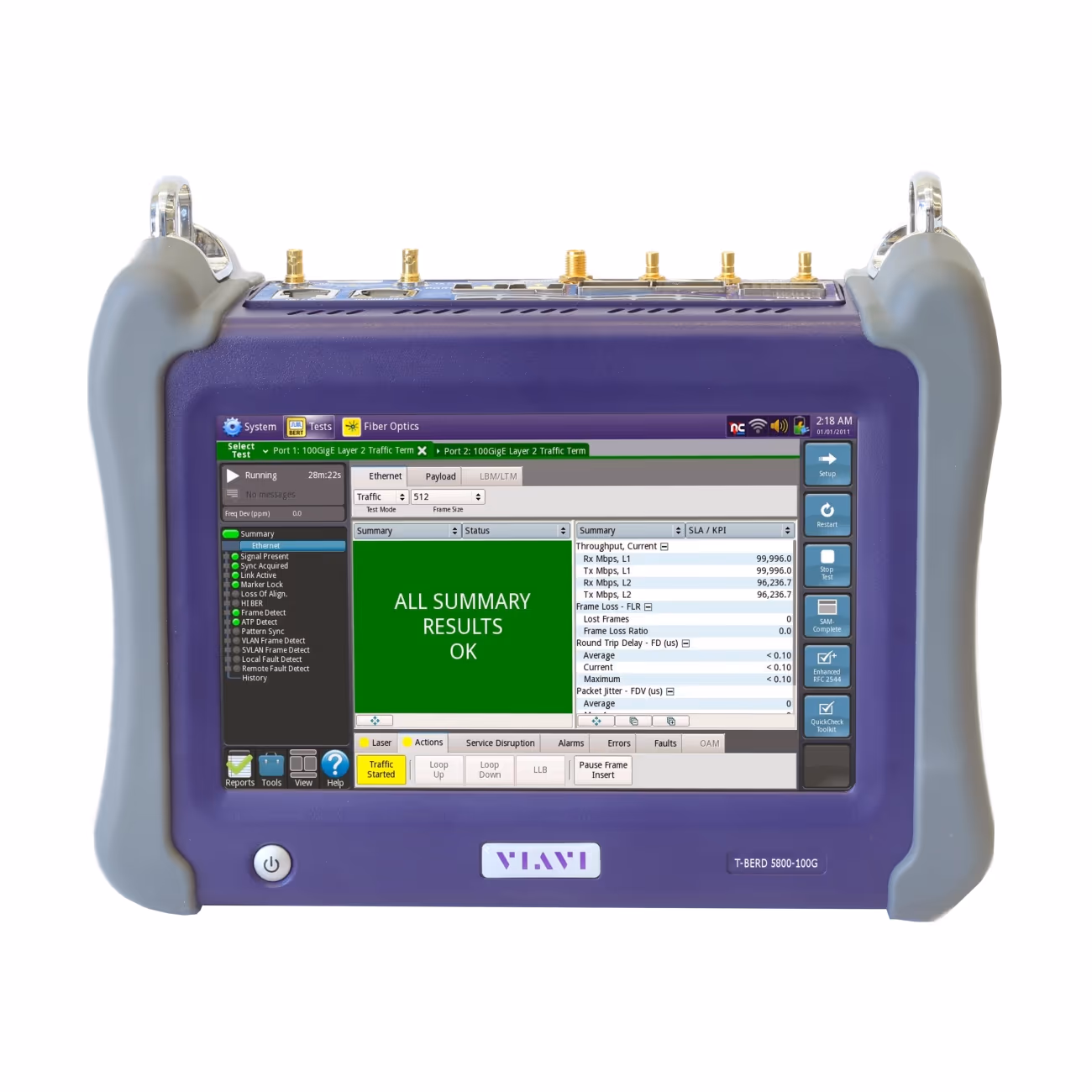

T-BERD/MTS-5800-100G Handheld Network Test Platform | 10GE Optics

VIAVI

Call For Pricing

Available to order

EDMO # TB800GE10G

MFR Part # TB5800-GE-10GE-100GHW

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The T-BERD®/MTS-5800-100G handheld network tester is the one tool that network technicians and engineers need to install and maintain their networks. It supports both legacy and emerging technologies to address network applications including metro/core, data center interconnect, and business services test applications. 5800-100G provides true independent dual-port plus fibers optics applications.

The industry’s smallest handheld, dual-port 100G test instrument can test throughout the life cycle of a network service, including fiber testing, service activation, troubleshooting, and maintenance. Equipped with latest technology interfaces including SFP/SFP+/SFP28 and QSFP+/ QSFP28/CFP4, the 5800-100G provides the investment protection needed to manage network growth while keeping customer satisfaction high. With advanced test features such as Optics Self-Test, high-Speed cable testing for data centers, Ethernet line rate capture/decode, and OTN Check, technicians can now test their networks faster and more accurately than ever before.

Features

Simplifies multi-technology testing with an all-in one dual 100 G handheld unit. Any rate, any port, any time
Provides the most advanced 100GE testing with any interface support. RS(544,514) for single lambda 100GE is provided with on unit FEC generation to determine the pre-FEC BER, get symbol error in a distribution table when disabling the QSFP28 Media FEC
Complete support of protocols including Ethernet, FlexE, OTN, SONET/SDH, PDH, Fibre Channel up to 32G, CPRI up to 24.3G, and eCPRI
Speeds up fiber optics testing, Ethernet service activation, and troubleshooting tests
Supports comprehensive rate testing ranging from DSx PDH (1.5M/2M) through to 112G OTU4
Saves time with the industry’s fastest RFC 2544 and Y.1564 SAMComplete™ Ethernet service activation test including nanosecond accurate latency measurements. Also supports RFC 6349 TrueSpeed up to 100GE
Ensures QSFP+/QSFP28 and CFP4 modules run error-free with the field optimized Optics Self Test
Provides speed and efficiency in testing OTN service activation with the OTN Check workflow automated script
Supports the VIAVI 4100-Series OTDR full band OSA or Channel Checkers modules with Smart Link and FiberComplete
Tests synchronization and timing using the built-in GNSS feature or by supplementing with multi-band TEM2 (Timing Expansion Module) to provide holdover support
