TRUE BLUE POWER

Call For Pricing
In stock
EDMO # TC280
MFR Part # 6430280-1
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

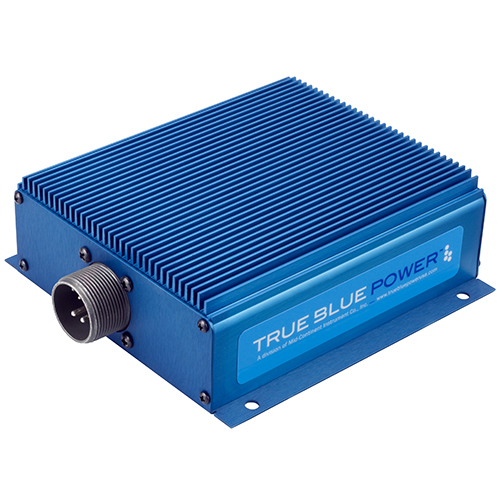

The TC280 AC-to-DC Converter provides 280 watts from an aircraft's 115 VAC input. The TC280 runs cooler and features a fan-less design. This AC/DC converter produces enough energy to power electronic equipment throughout the aircraft — including in-seat, cabin and cockpit power applications.

Features

  • The TC280 AC/DC converter (EDMO# TC280):
  • 280 watt, 28 VDC output
  • 115 VAC, 350 MHz – 800 MHz input voltage
  • Features:
  • Supplies 280 watts of 28-volt power
  • Compact and lightweight — only 2 lb
  • input transition, overload and short circuit protection, as well as temperature monitoring
  • 88% efficient
  • Remote On/Off
  • No cooling required
  • Mount to the floor, cabin wall, or outside pressure vessel
  • Designed in Wichita, Kanas, USA

Specifications

  • Model Number:
    TC280
  • Input Voltage:
    115 ±10A, nominal
  • Input current:
    2.8A, nominal
  • Output Voltage:
    28 VDC ±0.5 VDC
  • Output power:
    280 watt
  • Altitude:
    55,000 ft
  • Temperature:
    -65°F to 160°F (-55°C to 70°C)
  • Mating Connector:
    MS3106A-18-9S (MCI P/N 9016905-1)
  • Case:
    Anodized aluminum extrusion, blue
  • Certifications
    : FAA TSO-C71 certified RTCA DO-160G qualified

Related Products

Product Codes

  • Mfr Part No
    6430280-1
  • SCHEDULE B CODE
    8504.40.9530
  • TSO
    C71
