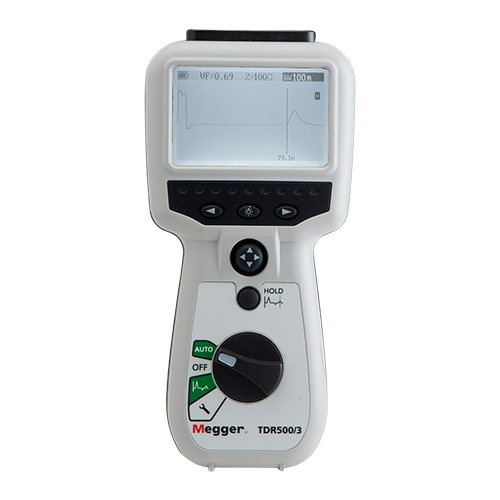

TDR500/3 Single Channel Time Domain Reflectometer

Product Description

The TDR500/3 is a handheld single channel time domain reflectometer (TDR) for locating faults on metallic cables. It is compact, can be used on all metallic cable pairs, and has a minimum resolution of 0.1 m and a 5 km maximum range, depending on velocity factor selected and cable type.

The TDR500/3 is easy to use and has four output impedances available (25, 50, 75, and 100 Ω) and a velocity factor between 0.2 and 0.99 will meet any cable test requirements. It also has a trace hold feature and a velocity factor between 0.2 and 0.99, so you can meet any cable test requirements.

The TDR500/3 has a simple selection option which, together with a four-way control switch, offers your intuitive operation. The 'Auto selection' option ensures that the most effective parameters are selected depending on the range required, aiding rapid diagnosis of the TDR trace.

A clear operator-controlled cursor allows instant measurement of the distance to the fault and a trace 'Hold' feature also allows you to hold a trace on the screen, something not seen on most other handheld TDRs. Extra high resolution together with a white-light backlight and gray scale tones make the graphical display vibrant, helping you to identify key events on the trace.

Specifications

• Weight:
  1.3 lb (0.6 kg)
• Dimensions:
  9.0 x 4.5 x 1.9 in (230 x 115 x 48 mm)
• Range:
  30, 75, 300, 750, 3000, 7500, 15000 ft (10, 25, 100, 250, 1000, 2500, 5000 m)
• Accuracy:
  ±1% of range ± pixel at 0.67 VF
• Resolution:
  1% of range
• Input Protection:
  Complies with IEC610101 for connection to live systems up to 150 V CAT IV when used with the optional fused test lead set
• Output Pulse:
  5 V peak to peak into open circuit. Pulse widths determined by range and cable.
• Gain:
  Set for each range with three user selectable steps (in manual operating mode)
• Velocity Factor:
  Variable from 0.2 to 0.99 in steps of 0.01
• TX Null:
  Automatic
• Power Down:
  Automatic after 5 minutes with no key press
• Backlight:
  Stays on for 1 minute with no key press
• Battery:
  Five LR6 (AA) type batteries, Manganese alkali or nickel metal-hydride cells
• Battery Life:
  Up to 14 hours (typical)
• IP Rating:
  The instrument is designed for use indoors or outdoors and is rated to IP54
• Case:
  ABS
• Connectors:
  Two 4 mm-safety terminals
• Test Lead:
  1 pair 2 meters long consisting of 2 x 4 mm shrouded connector to miniature crocodile clips
• Display:
  256 x 128 pixel Graphics LCD
• Operating Temperature:
  5ºF to 122ºF ( -15ºC to 50ºC )
• Storage Temperature:
  -4ºF to 158ºF (-20ºC to 70ºC)
• Safety:
  When using the optional fused test lead set this instrument complies with IEC61010-1 for connection to live systems with less than 300 V between the terminals and up to 150 V CAT IV to earth
• EMC:
  Complies with Electromagnetic Compatibility Specifications (Light industrial) BS EN 61326-1, with a minimum performance of ‘B’ for all immunity tests

Product Codes

• Mfr Part No
  TDR500/3
