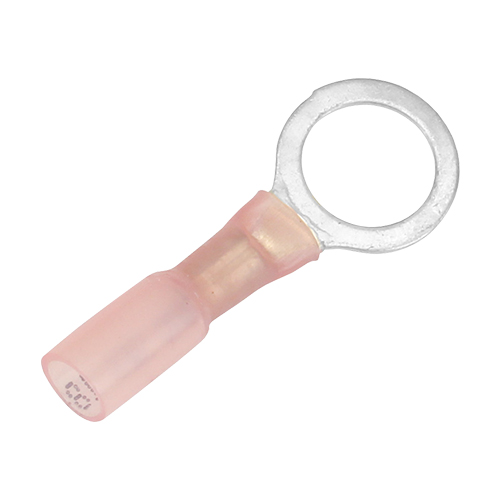

Heat Shrink Ring Terminal | 22-18 AWG, 3/8", 100pc

Product Description

Red Ring terminals are used to create lasting electrical connections. By using ring terminals, you no longer have to worry about the connector pulling off. The ring fits snuggly over a screw or stud and will not pull loose as other terminals can. Red ring terminals are for use with 22-18 AWG wire. They offer long-term protection and ease of installation. 22-18 AWG ring terminals come in a variety of insulation types.

Non-insulated ring terminals are the economical choice. They are used in applications where specific installation characteristics are not needed. Nylon ring terminals offer rugged construction making them very durable. They are known for their high-performance quality as well as their protection against stress. Vinyl ring terminals are for use where an insulated barrel is a necessity. Vinyl ring terminals carry an insulated sleeve of color-coded PVC. This sleeve is tapered to the barrel permanently. Heat shrink terminals protect against the elements in the harshest environments. They are used to create moisture proof barriers which protect the electrical connection. These heat shrink terminals were designed with a heat activated liner. This adhesive liner provides an environmentally sealed connection for wires from 22-18 AWG.

This heat shrink ring terminal (EDMO# TE1838R100) accepts 22-18 AWG wire, 3/8" studs, and comes a package of 100pc.

Specifications

• Wire Size:
  22-18 AWG
• Stud Size:
  3/8"
• Terminal Type:
  Ring
• Plating:
  Electrode-posited tin
• Shrink Ratio:
  Approx. 3:1 at 135 °C
• Operating Temperature:
  -55 °C to 125 °C
• Volume Resistivity:
  1015 Ω-cm 3
• Dielectric Strength:
  900 V/mil
• Voltage Rating:
  600 V
• Compliances:
  UL, CSA, RoHS

Product Codes

• Mfr Part No
  TE18-38R-100
• SCHEDULE B CODE
  8536.90.4000
