DANIELS MFG

Call For Pricing
Available to order
EDMO # TH441-1
MFR Part # TH441-4
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

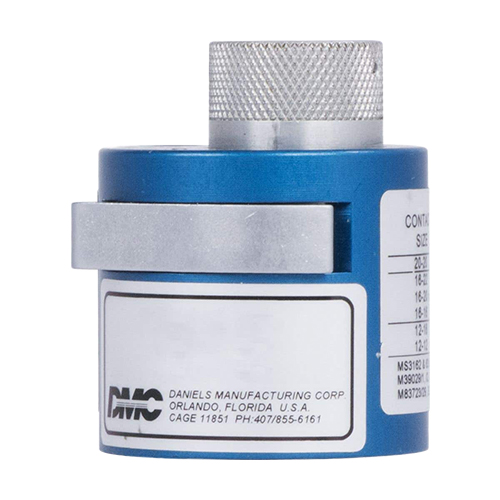

This turret head (EDMO# TH441-1) is used with the AF8, WA27F, and AFE8B tool frames and adapt the tool frames to a particular application. The data plate on each turret head designates which contacts the turret accommodates for its wire size and indicates selector position.

Features

  • Contacts Serviced:
  • Burndy YHMM22–2DB8 24–22 AWG Junction System Contacts
  • Burndy YHMM20–2DB8 22–20 AWG Junction System Contacts
  • Burndy YHMM16–2DB8 20–16 AWG Junction System Contacts
  • Burndy YHMM12–2DB8 14–12 AWG Junction System Contacts
  • Compatible Tools:
  • AF8 Hand Crimp Tool Frame
  • WA27F Pneumatic Crimp Tool Frame
  • AFE8B Battery Crimp Tool Frame

Specifications

  • Dimensions:
    2.00 x 1.50 in
  • Positioner Colors:
    Red, Blue, Yellow
  • Positioner Hole Dimensions:
    Red: 0.098 in Blue: 0.098 in Yellow: 0.111 in
  • Contact Sizes:
    24–12 AWG

Related Products

Product Codes

  • Mfr Part No
    TH441-4
