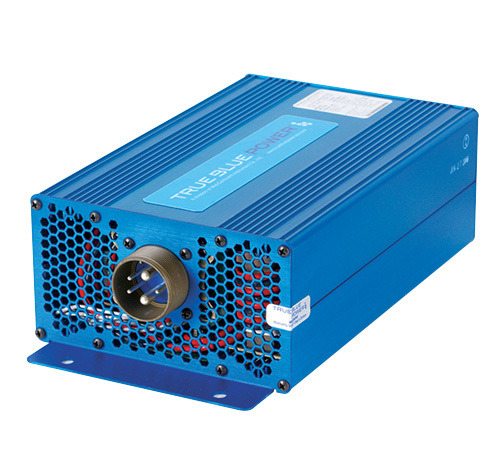

TI1200 DC-to-AC Inverter | 115 VAC, 60 Hz

TI1200 DC-to-AC Interver | 115 VAC, 60 Hz

Select an option

TRUE BLUE POWER

Call For Pricing

Available to order

EDMO # TI1200

MFR Part # 6431200-1

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TI1200 DC-to-AC Inverter supplies 1200 watts to power multiple cabin accessories, galley equipment, and entertainment systems. It has a small and lightweight footprint and includes the same connector as legacy designs. The TI1200 features overload and short-circuit protection up to 150% of its rated load.

This TI1200 model (EDMO# TI1200):

1,200 watt, 115 VAC at 60 Hz output
20 VDC – 36 VDC, 60A at 28 VDC input

Features

Supplies 1200 watts to power multiple cabin accessories, galley equipment, and entertainment systems
Ideal for use in emergency medical service, law enforcement, and VIP cabin configurations
Compact and lightweight designweights only 7.3 lb
88% efficient operation
Input transient, overload, and short-circuit protection for up to 150% of rated load
Optional remote On/Off
Designed and built in Wichita, Kansas, USA

Specifications

Weight

: 7.3 lb
Dimensions:

12 x 6.32 x 3.46 in
Input Voltage:

20 VDC – 36 VDC
Input Current:

50A @ 28 VDC
Output Voltage:

115 VAC ±3%
Output Power:

1,200 VA
Output Frequency:

60 Hz ±0.1%
Output Waveform

: Single phase, true sine wave, < 3% THD
Altitude:

55,000 ft
Humidity:

Tested to greater than 95% for 10 days, temperature cycle of 75°F to 160°F
Temperature:

–65°F to 160°F (-55°C to 70°C)
Integral Cooling:

Dual, electronically-controlled brushless fans
Mating Connector:

MS3106A24-12S MS3057-16A (cable clamp/backshell)
Case:

Anodized aluminum extrusion, blue
Certification:

FAA TSO-C73 certified EASA ETSO-C73 certified RTCA DO-160G qualified
