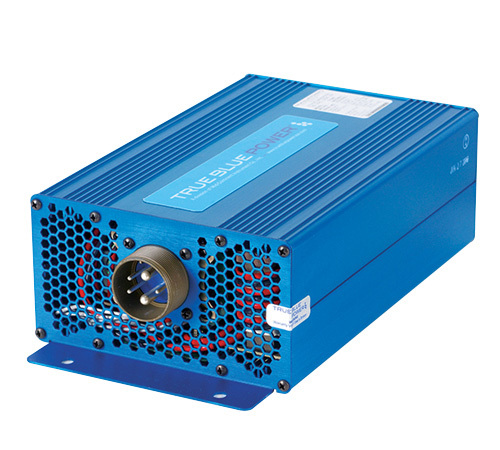

TI1200 DC-to-AC Inverter | 115 VAC, 400 Hz

Product Description

The TI1204 DC-to-AC Inverter supplies 1200 watts to power multiple cabin accessories, galley equipment, and entertainment systems. It has a small and lightweight footprint and includes the same connector as legacy designs. The TI1200 features overload and short-circuit protection up to 150% of its rated load.

This TI1200 model (EDMO# TI1204):

• 1,200 watt, 115 VAC at 400 Hz output
• 20 VDC – 36 VDC, 60A at 28 VDC input

Specifications

• Weight:
  7.3 lb
• Dimensions:
  12 x 6.32 x 3.46 in
• Model Number:
  TI1204
• Input Voltage:
  20 VDC – 36 VDC
• Input Current:
  60A at 28 VDC
• Output Voltage:
  115 VAC ± 3%
• Output Power:
  1,200 VA
• Output Frequency:
  400 Hz ±0.1%
• Output Waveform:
  Single phase, true sine wave, < 3% THD
• Altitude:
  55,000 ft
• Humidity:
  Tested to greater than 95% for 10 days, temperature cycle of 75°F to 160°F
• Temperature:
  –65°F to 160°F (-55°C to 70°C)
• Integral Cooling:
  Dual, electronically-controlled brushless fans
• Mating Connector:
  MS3106A24-12S MS3057-16A (cable clamp/backshell)
• Case:
  Anodized aluminum extrusion, blue
• Certification:
  FAA TSO-C73 certified EASA ETSO-C73 certified RTCA DO-160G qualified

Product Codes

• Mfr Part No
  6431200-7

Documentation

• Technical Drawing
• TI1200 Install Manual.pdf
