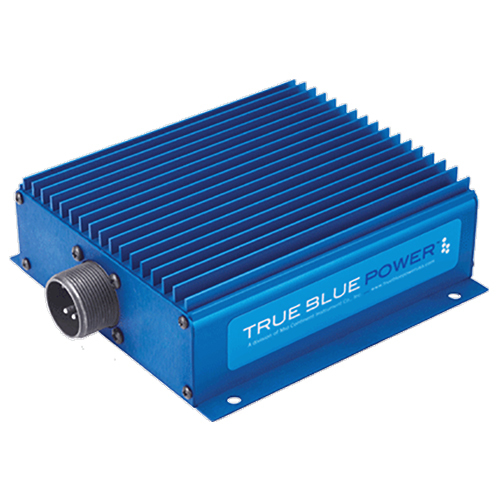

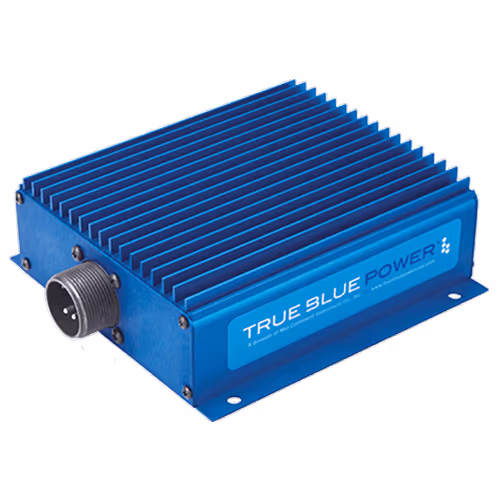

TI250 DC-to-AC Inverter | 115 VAC, 60 Hz

TI250 DC-to-AC Inverter | 115 VAC, 60 Hz

    TRUE BLUE POWER

    Call For Pricing
    Available to order
    EDMO # TI250
    MFR Part # 6430250-1
    Need help placing an order? Call 800-235-3300 or Contact us

    Product Description

    The TI250 DC-to-AC Inverter is an efficient DC to AC inverter that supplies 250 watts of "wall outlet" power from an aircraft’s 28 VDC input. Engineered with a fanless design, the TI250 saves energy, operates cooler, and weighs only 2.2 pounds. The TI250 utilizes the same connector and footprint as legacy designs and includes overload, short-circuit, and ground fault protection.

    This TI250 model DC-to-AC Inverter (EDMO# TI250):

    • 60 Hz output frequency
    • 115 VAC output voltage

    Features

    • Supplies 250 watts to power multiple cabin accessories, laptops, tablets, and cell phones
    • Compact design and lightweight — weighs only 2.2 lb
    • 87% - 90% efficient operation
    • Input transient, overload, short-circuit protection up to 150% of rated load
    • Ground fault interrupt (GFI) protection
    • Remote on/off
    • Designed and built in Wichita, Kansas, USA

    Specifications

    • Input Voltage:
      20 VDC – 36 VDC
    • Input Current:
      10 A at 28 VDC input
    • Output Voltage:
      115 VAC ±3%
    • Output Power:
      250 VA
    • Output Frequency:
      60 Hz ±0./1 Hz
    • Output Waveform:
      Single phase, true sine wave, <3% total harmonic distortion
    • Power Conversion Method:
      Current mode control
    • Weight:
      2.2 lb
    • Altitude:
      55,000 ft
    • Humidity:
      Tested to < 95% for 10 days, temperature cycle off 100°F to 150°F
    • Temperature:
      -65°F to 160°F (-55°C to 70°C)
    • Mating Connector:
      MS3106A-18-9P (MCI P/N 9016905-1, -2)
    • Case:
      Anodized aluminum extrusion, blue
    • Certification:
      FAA TSO-C73 certified RTCA DO-160G certifie

    Related Products

    Product Codes

    • Mfr Part No
      6430250-1
