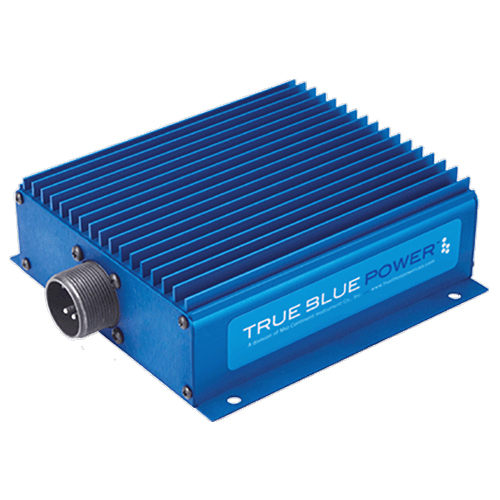

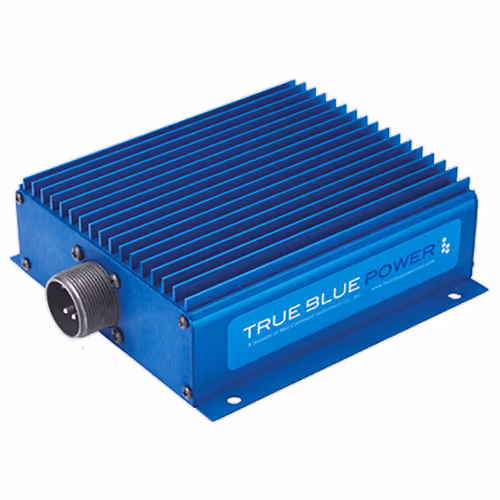

TI254 DC-to-AC Inverter | 115 VAC, 400 Hz

Select an option

TRUE BLUE POWER

Call For Pricing

Available to order

EDMO # TI254

MFR Part # 6430250-2

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TI254 DC-to-AC Inverter is an efficient DC to AC inverter that supplies 250 watts of "wall outlet" power from an aircraft's 28 VDC input. Engineered with a fanless design, the TI250 saves energy, operates cooler, and weighs only 2.2 pounds. The TI250 utilizes the same connector and footprint as legacy designs and includes overload, short-circuit, and ground fault protection.

This TI254 model DC-to-AC Inverter (EDMO# TI254):

400 Hz output frequency
115 VAC output voltage

Features

Supplies 250 watts to power multiple cabin accessories, laptops, tablets, and cell phones
Compact design and lightweight — only 2.2 lb
87% – 90% efficient operation
Input transient, overload, short-circuit protection up to 150% of rated load
Ground fault interrupt (GFI) protection
Remote on/off
Designed and built in Wichita, Kansas, USA

Also Purchased

Specifications

Model Number:

6430250-2
Weight:

2.2 lb
Input Voltage:

20 VDC – 36 VDC
Input Current:

28 VDC @ 10A
Output Voltage:

115 VAC ±3%
Output Power:

250 VA
Output Frequency:

400 Hz ±0.1%
Output Waveform:

Single phase, true sine wave, < 3% total harmonic distortion
Power Conversion Method:

Current mode control
Altitude:

55,000 ft
Humidity:

Tested to greater than 95% for 10 days, temperature cycle of 100°F to
Temperature:

–65°F to 160°F (-55°C to 70°C)
Mating Connector:

MS3106A-18-9S (MCI P/N 9016905-1,-2)
Case:

Anodized aluminum extrusion, blue
Certificate:

FAA TSO-C73 certified RTCA DO-160G qualified
