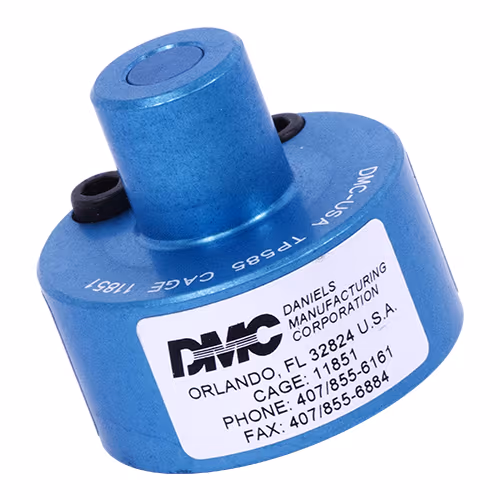

TP585 Single Position Head

DANIELS MFG

Call For Pricing

Available to order

EDMO # TP585

MFR Part # TP585

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This single position head (EDMO# TP585) is used with the AF8, AFE8B, and WA27F tool frames and adapts the tool frame to a particular application. The data plate on the positioner designates which contacts the single position head accommodates and suggested selector depth setting for the wire size being used.

Features

Contacts Serviced:
M24308/10–1 & /11–1 Size 24–20 AWG Contacts
M24308/16 & /17 –1 through –5 Inner P & S Contacts for RG55B, 58C, 141A, 142A, 142B, 178B, 180B, 188, 195A, 196A, 223, 303, 316/U Cables
Compatible Tools:
AFM8 Adjustable Miniature 8 Indent Lower Range Crimp Tool
AFE8B Battery Crimp Tool
WA27F Pneumatic Crimp Tool

Specifications

Position Head Dimensions:

1.490 x 1.375 in
Locator Hole Dimensions:

0.116 in
Contact/Cable Sizes:

24–20 AWG; RG55B, 58C, 141A, 142A, 142B, 178B, 180B, 188, 195A, 196A, 223, 303, 316/U
