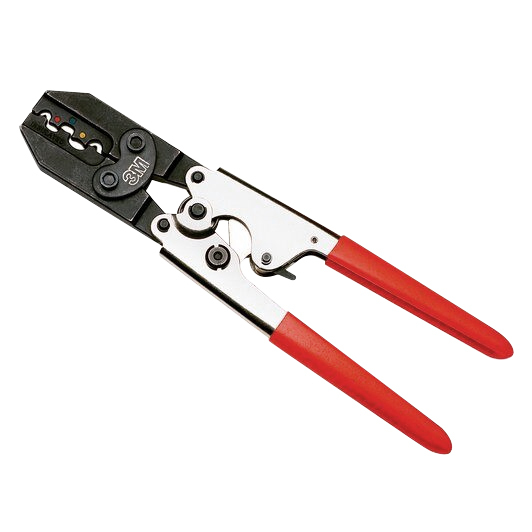

TR-490 Scotchlok™ Hardened Steel Ratchet Crimp Tool

Product Description

The TR-490 is a positive action ratchet tool that crimps both insulated and non-insulated terminals and connectors. It has hardened steel jaws and a corrosion-resistant finish that offers enhanced durability and effectively crimps nylon, vinyl-insulated or non-insulated, butted or brazed-seam terminals. This tool has a ratchet mechanism which provides positive closure of the handles for a full crimping cycle. It is cushion-gripped, and features a pawl release lever for the removal of misplaced terminals.

Specifications

• Weight:
  0.8 lb
• AWG:
  22-10
• Die sizes insulated:
  Red - 22-18 AWG Blue - 16-14 AWG Yellow - 12-10 AWG
• Die sizes non-insulated:
  22-14 AWG 12-10 AWG

Product Codes

• Mfr Part No
  TR-490

Documentation

• TR490 Datasheet
