EA100 Interface Unit | Century IIB/III/IV with Flight Director, 12V

DEKLIN TECHNOLOGIES

Call For Pricing

Available to order

EDMO # TR2R-12

MFR Part # TR2R 12V

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

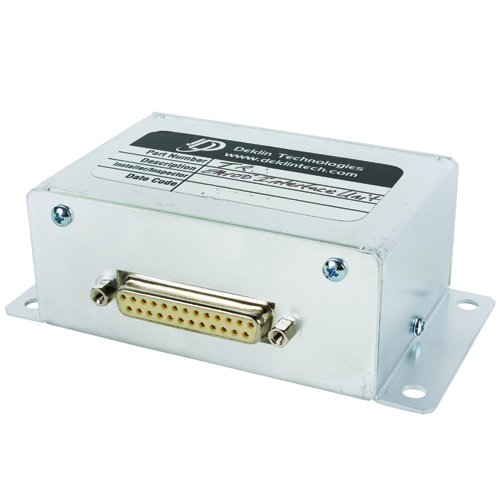

The EA100 TR1 and TR2 transformer/relay adapters are pre-assembled autopilot interface units that provide the interconnections to interface with Century Autopilot flight systems. It is designed to provide convenient installation for installers to use in place of producing the same circuits as specified in the PFD installation manual. These prefabricated assemblies save time for installers of Aspen Avionics EA100 units from have to source and build their own circuits. The TR1 and TR2 units are encased in a small aluminum housing ready for installers to simply plug in.

This EA100 interface unit (EDMO# TR2R-12) is built for the Century IIB/III/IV with flight director relay.

Features

Provides necessary relays for installation of the EA100 interface unit
Can be ordered with an optional relay when needed to install a flight director interface

Specifications

Chassis & Cover Dimensions:

4.6 x 2.56 x 1.5 in (116.8 x 65 x 38.1 mm), not including mating connector
Mounting:

bulkhead, four 8/32 screws
Case Material:

5052H32 aluminum
Input Specifications:

Relay Rated Voltage: 28 VDC
Relay Coil Resistance:

320Ω ±10%
Current Rating:

10A
Specification

MIL STD: M83536/10-027
TR2R Component List:

Housing: 5052H32 aluminum
Specification

Chassis & Cover Resistors: 0Ω jumper
Specification

Capacitor: 0.12µF 50V 10%
Specification

Relay: FCA-210-1027M transformers: Sp-20 (x1), SP-69 (2x)
Equipment Supplied:

1x TR2R unit
Option Parts:

(1x) AIU-900IK installation kit (1x 25-pin male D-Sub connector, 1x SPC15461 hood or equivalent, 1x screw locking hardware kit
