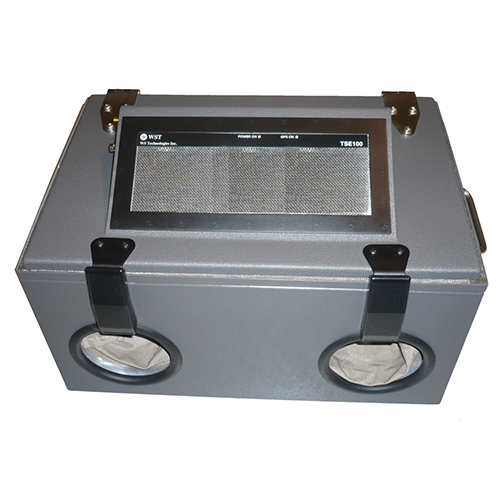

TSE100B RF Shielded Screen Box | Sniffer Antenna, RF External Connector

RF Shielded Screen Box | Sniffer Antenna, RF External Connector

WS TECHNOLOGIES

EDMO#: TSE100B

MFR#: TSE100B

Tariff fee may apply

Tariff Warning Icon

Description

The TSE100B is used to verify an ELT in normal activation mode without causing false alerts. This screen box is enabled for verifying GPS equipped beacons and is designed specifically for testing Cospas-Sarsat beacons. The patented screened gloves, along with the RF shielded window and interior illumination, give full control over the ELT and the beacon tester.

Features

Includes:

  • TSE100B RF Screen Box, Power Cable and AC Adapter, Active GPS Antenna (15’), Sniffer Antenna, Certificate of Conformance.

Features:

  • Verify GPS equipped ELT location details and GPS reception and encoding capabilities
  • Prevent false alerts while testing ELTs in Normal Activation mode
  • Test the G-switch activation in an RF shielded environment
  • Test with a shielded effectiveness > 90 dB for 121.5, 243, and 406 MHz
  • Shielded gloves allow handling beacon inside illuminated enclosure
  • View equipment through integrated window
  • Connect beacon directly to a WST Beacon Tester (BT200) inside enclosure or;
  • Connect beacon directly to tester (BT200 or STB100) via BNC RF Port or;
  • Use internal Sniffer Antenna to connect to tester (BT200 or STB100)

Specifications

Weight:
16 lb

Outside dimensions:
18 x 12 x 12 in.

Inside dimensions:
17 x 11 x 8.5 in.

Shielding effectiveness:
121, 243, 406 - >90 dB

Power requirements:
USB 5V < 500mA

Product Codes

Mfr Part No :

TSE100B

Documentation
