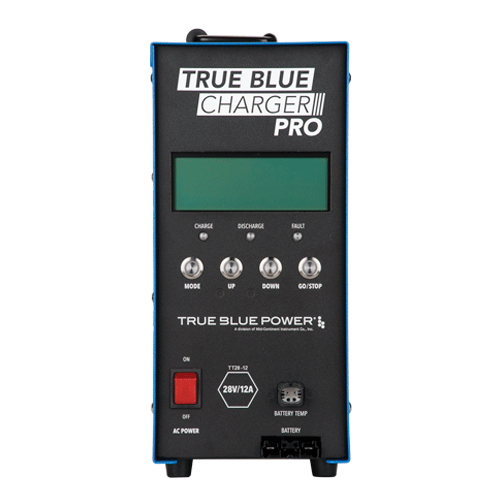

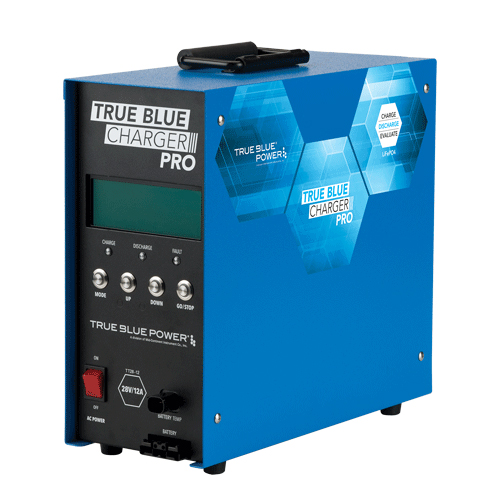

TT28-12 True Blue Charger PRO

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing

Available to order

EDMO # TT28-12

MFR Part # ACM-1260-101

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TT28-12 True Blue Charger PRO is specifically designed to charge and discharge, as well as test the TB series lithium-ion, aircraft batteries. This charger is easy-to-use and capable of automatically discharging lithium-ion batteries to 30% state-of-charge, as required for air shipment. The True Blue Charger PRO comes pre-loaded with all the parameters for charging and discharging True Blue Power lithium-ion batteries, allowing maintenance personnel to safely and efficiency top charge batteries and perform scheduled capacity checks.

Features

Specifically engineered to charge, discharge and test TB series lithium-ion aircraft batteries such as the TB17, TB20, TB30, TB40, TB44, TB60 models
Variable Power: 12.5 amps charge (nominal); 60 amps discharge (maximum)
Alphanumeric LCD display indicates battery mode, current, voltage, temperature and timer
Charge, discharge and fault LED indicators

Specifications

Weight:

29.5 lb (13.4 kg)
Dimensions:

6.5 x 14.5 x 15 in
Input Power:

90 – 132 VAC or 180 – 264 VAC (switch selected) @ 47 – 63 Hz
Input Power:

8.4A @ 115 VAC 4.35A @ 23 VAC 15A circuit breaker
Battery Charge Voltage:

Lithium-ion; 28.8V (maximum)
Temperature:

32°F to 131°F (0°C to 55°C), operating -40°F to 179°F (-40°C to 80°C), storage
Display Measurement:

To 0.1 volts, 0.1 amps
Display Accuracy:

±0.2 volts, ±0.2 amps
Battery Connectors:

Compatible with MS-3509, 5/16 inch ring terminals, alligator clamps and temperature cables
Protection & Monitoring:

Overcharge, over-temperature and time out for failed batteries, auto shut off after top charge is complete and audible alerts for low voltage and reverse polarity
