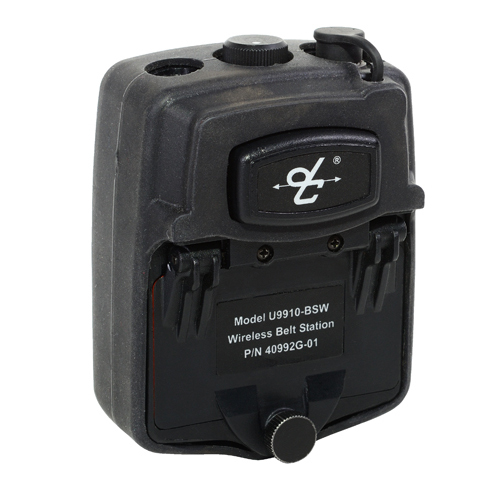

U9910-BSW Wireless Belt Station

WIRELESS BELT STATION/Hands free, full duplex, voice activated intercom communication. DECT 6.0 based technology. Works with any 9900 wireless headset

DAVID CLARK COMPANY

Call For Pricing
Available to order
EDMO # U9910-BSW
MFR Part # 40992G-01
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Series 9900 wireless intercom system is the perfect solution for wireless communications in demanding, high-noise environments such as airline and airport operations, fire and rescue applications, marine intercom, or any applications requiring robust, reliable and secure communications. The 9900 system is ideal for push-back operations, wing-walkers, marshaling agents, maintenance mechanics and de-icing operations. The 9900 wireless system consists of the push-back gateway, wireless belt stations, and any Series 9900 wireless headsets.

The U9910-BSW is a voice-active, belt station that provides the wireless interface between the headset and a wireless gateway. Up to four belt stations can be linked to the a gateway via close-proximity linking. The status of the wireless link, radio/intercom PTT transmit, and battery charge is indicted by the bi-color LED which is located on the on/off/link button. A user replaceable, rechargeable Li-Polymer battery provides 24 hours of continual use.

Features

  • Provides a hand-free, full-duplex, and voice-activated intercom communications
  • DECT 6.0 based technology provides secure signaling and prevents unwanted interceptions and eliminates cross talk with other systems or work groups
  • Works with any Series 9900 Wireless Headset
  • Controls incorporate a power button used for close-proximity linking, a VOX adjustment used for mic control, and a large PTT switch used for override or radio PTT applications
  • VOX “helper” tones assist users when setting up the optimal volume for any high-noise environments through the rotary switch
  • Included black rubberized protective skin adds impact protection
  • Voice prompts inform the user about the wireless link status
  • Marine-grade, water-tight, impact-resistant enclosure provides rugged durability and reliability
  • 360° rotating belt clip provides versatile attachment and accessibility options
  • A water-tight battery compartment holds the user replaceable, rechargeable Li-Polymer battery so that the belt station can stay in service

Specifications

  • Weight:
    10 oz (280 g), with battery
  • Dimensions:
    4 x 2-3/4 x 1-7/8 in, with belt clip
  • Frequency:
    1920 MHz -1930 MHz
  • Average Power Output:
    4mW (100 mW peak), typical
  • Range:
    100 m (300 ft) line-of-sight, typical
  • Carriers:
    5 each (1,728 kHz spacing)
  • Time Slots:
    2x12 (up and down stream)
  • Operating Temperature:
    -10°C to 45°C
  • Storage Temperature:
    -20°C to 60°C
  • Power Source:
    Li-Polymer rechargeable 3.7V, 2,000mA battery
  • Power Consumption:
    100mA, typical

Related Products

Product Codes

  • Mfr Part No
    40992G-01
  • ECCN
    5A991
  • SCHEDULE B CODE
    8544.49.0000
  • TSO
    C139
