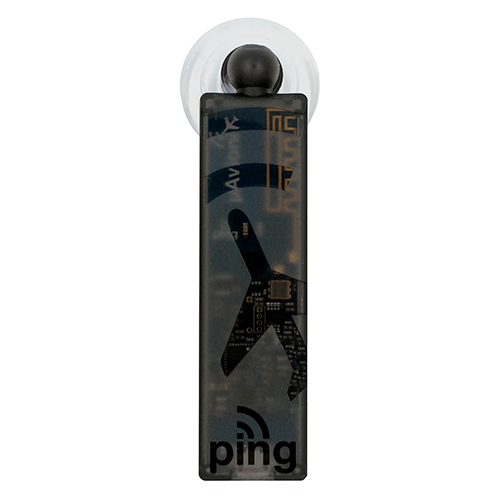

pingUSB Dual-Band ADB-S Traffic Receiver

UAVIONIX

Call For Pricing

Available to order

EDMO # UAX9000402

MFR Part # UAX-90004-02

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The pingUSB is the small, lightweight, and affordable dual-band ADS-B traffic receiver. The device allows users to view in realtime ADS-B traffic conveniently on their electronic flight bag (EFB) app on a wireless mobile device or on a PC via a USB connection.

Features

Dual-band ADS-B traffic receiver
Live ADS-B traffic on an EFB
Receives ADS-B traffic on both 978MHz and 1090MHz and delivers real-time data to GDL 90 protocol enabled software systems
Using a WI-FI capable EFB, pingUSB directly connects to PC application such as open-source Virtual Radar Server
Plug-and-play with senseFly eMotion UAS Ground Control Station (CGS) software platform

Specifications

Weight:

5 g Dimensions: 34 x 19 x 8 mm Input Voltage: 4V — 6V / 150 mA MTL 1090 MHz: -84 dBm (-81 dBm to 0 dBm) MTL 978MHz: -93 dBm (-90 dBm to -3 dBm) (pingUSB does not receive or process FIS-B weather data) Interface: MavLINK serial 57,600 bps
