tailBeaconX Experimental, AV-30E, & AV-Link Bundle | ADS-B, MFD

Product Description

tailBeaconX is the next era of global ADS-B. Compatible with surface and space-based ADS-B surveillance systems, tailBeaconX is a Mode S Extended Squitter ADS-B transponder and aviation GPS integrated into an LED rear position light. With global compliance, tailBeaconX is the key to limitless destinations.

The AV-30 is a highly capable, fully digital, multi-mode instrument that mounts in the legacy 3⅛ inch round instrument panel cutout. It can be field configured as either an Attitude Indicator (AI) or a Direction Indicator (DG), contains an internal battery, and allows for a wide variety of pilot customization.

With AV-Link, pilots have the ability to wirelessly connect a supported ADS-B Receiver, such as ForeFlight Sentry or Sentry Mini, echoUAT, SkyEcho, skySensor, or any standard GDL90 WiFi protocol portable ADS-B receiver with GPS to AV-30E and see live ADS-B traffic displayed in the panel.

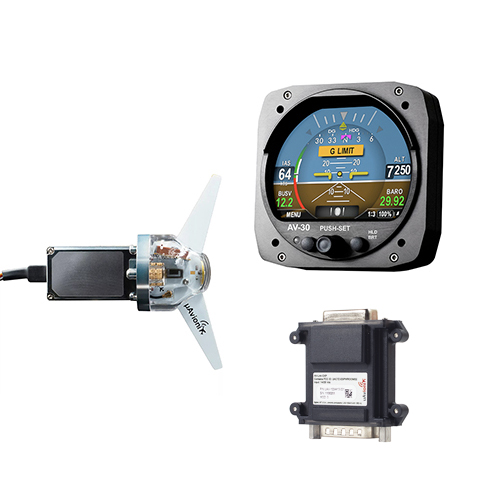

Version (EDMO# UAX9005906) includes the tailBeaconX Experimental (UAX9005801), the AV-30E (AV-20E) Experimental Multi-function Panel Display, and AV-Link (AV-LINKEXP) Experimental WIFI Hub.

Specifications

• tailBeaconX Specifications:
• Weight:
  140 grams
• Size:
  113x105x48mm
• Input Voltage:
  11-31V DC
• Operating Power:
  3 Watts
• SDA/SIL:
  2/3
• Operating Temp:
  -45°C to 70°C
• 1090ES ADS-B Transmitter:
  Power Classification 250 Watts Nominal
• WAAS GPS:
  Tracking - 166dBm Reacquisition -1 60dBm Cold Start - 148dBm
• LED Position Light:
  Color - Aviation White Intensity - 20 candelas
• Control Head:
  Physical - RS232 or Power Line Modem Protocol - UCP
• AV-30E Specifications:
• Weight:
  0.50 lb
• Dimensions:
  3.38 x 3.38 x 1.6 in.
• Input Voltage Nominal:
  +10 to +32 VDC
• Input Voltage Max:
  +60 VDC
• Input Power Nominal:
  6 Watts (0.5 Amps @ 12VDC)
• Input Power Max:
  12 Watts (1.0 Amps @ 12VDC)
• Required Circuit Breaker:
  2 Amp
• Operation on Battery:
  2 Hours Typ. @ 20°C / 30 Minutes Min @ -20C
• Mounting Configuration:
  3 1/8” Round Instrument Hole Electrical Connector: 15 Pin Male D-Sub
• Pneumatic Connectors:
  1/4 in. OD Quick Connect
• Mounting:
  (4X) #6-32 Machine Screws
• Case Material:
  Billet Aluminum
• Operating Temp:
  -20°C to +55°C
• Diagonal Size:
  3 in (circular)
• Contrast Ratio:
  (Typical) 500
• Brightness:
  (Typical) 1000 cd/m2
• Viewing Angle Left/Right:
  60°
• Viewing Angle Up:
  45°
• Viewing Angle Down:
  10°
• Backlight Lifetime:
  (Typical) 50,000 hr

Product Codes

• Mfr Part No
  UAX-90059-06
