pingStation 2 All-Weather Network Ready ADS-B Receiver | Dual Band, POE Interface


UAVIONIX

Call For Pricing
Available to order
EDMO # UAX9007801
MFR Part # UAX-90078-01
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

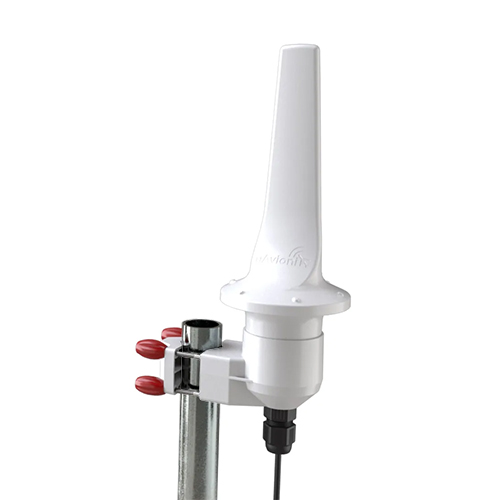

The pingStation 2 (EDMO# UAX9007801) is a dual band (978MHz and 1090MHz), networkable Automatic Dependent Surveillance – Broadcast (ADS-B) receiver with a Power-Over-Ethernet (POE) interface enclosed in an IP67 rated protective enclosure. pingStation provides ground, surface, or low altitude ADS-B surveillance. Robust enough to be permanently mounted outdoors in harsh environmental conditions, and small enough to be used as a mobile asset for roaming operations.

Features

  • Networkable
  • Weatherproof IP67 enclosure
  • Dual band 978 MHz, 1090 MHz
  • Integrated GPS provides precision time-stamping
  • MLAT capable
  • All-in-one receiver, GPS, and antenna
  • Power-over-ethernet (POE)
  • Pole mount clamp
  • Multiple format data

Specifications

  • Weight:
    425 grams
  • Dimensions:
    4.5 x 7.5 x 14.8 in.
  • Input voltage:
    44-57V / 350mA Power over Ethernet
  • Dynamic range:
    MTL 1090MHz: -88dBm,-79 to 0dBm MTL 978MHz: -93dBm, -90 to -3dBm
  • Interface:
    Ethernet (JSON UDP), Compressed VRS (Virtual Radar Server)

Related Products

Product Codes

  • Mfr Part No
    UAX-90078-01
