skyBundle | skyBeacon TSO & skySensor

UAVIONIX

Call For Pricing
Available to order
EDMO # UAX9011701
MFR Part # UAX-90117-01
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

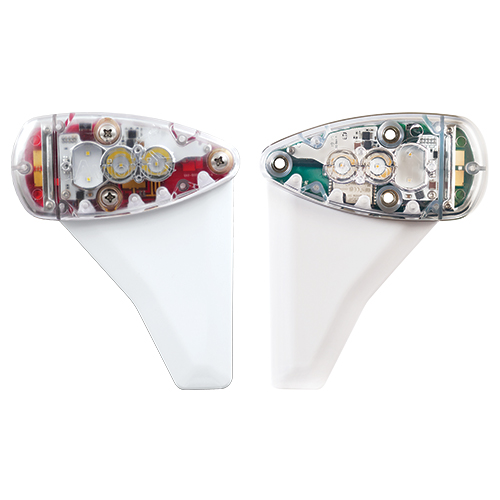

The skyBundle (EDMO# UAX9011701) combines the skyBeacon (UAX9003201) and skySensor (UAX9009801) to meet all your ADS-B needs with the lowest installation cost and largest approved model list of any UAT ADS-B system.

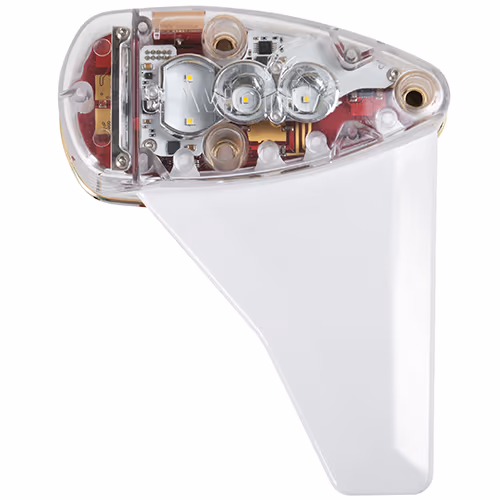

The skyBeacon from uAvionix is a TSO approved, LED wingtip position light with ADS-B Out UAT & Integrated WAAS GPS. With easy installation, configuration, and reduced down times, the skyBeacon provides an innovative and cost-effective, ADS-B Out, 2020 compliant solution without requiring any panel modifications or additional transponders.

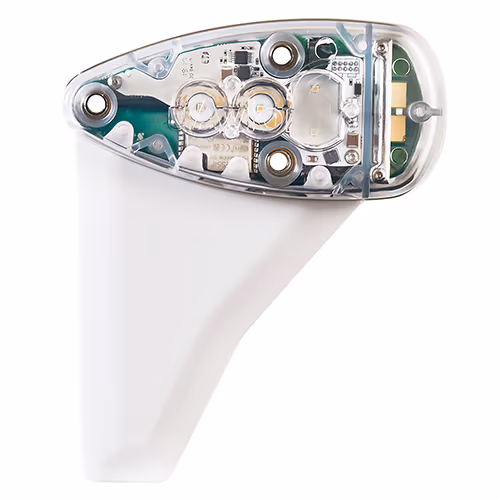

The skySensor is a ADS-B dual band receiver built into a wingtip, starboard position, anti-collision light. This subscription-free device provides in-flight weather information on both 978 MHz and 1,090 MHz and delivers in real-time aircraft position and weather overlays to EFB supported applications using the GDL90 protocol, such as ForeFlight Mobile, FLTPlan Go, FlyQ, WingX, and many other applications.

Features

  • skyBeacon Specifications:Meets the performance requirements of TSO-154c Class B1S. RTCA DO-282B Class B1S
  • Meets performance requirements of TSO-C30c Type I
  • Integrated RAIM processor for Security and Integrity protection
  • SBAS corrections and health messages used to detect and correct satellite range errors
  • Satellite pseudo range step errors detected and excluded
  • SBAS fast and long-term corrections applied
  • Decodes altitude and squawk via aircraft electrical system
  • STC data package accepted by FAA with 272 aircraft AML
  • FCC ID 2AFFTUAT016R
  • ADS-B Out: 91.255, 91.227, AC 20-165B
  • GNSS Position: AC 20-165B
  • Position Light: SAE/AS8037
  • Installation is as simple as replacing the aircraft position light
  • No airframe modifications or additional antennas are required
  • Works with any Mode C transponder
  • Transponder data is provided via the existing aircraft wiring system using the Power Transcoder
  • skyBeacon uses the existing mounting location, breaker, and wiring
  • The installation requires 3 screws and 3 wires
  • skySensor Specifications:Dual-link ADS-B receiver operates on legacy 1,090 MHz ADS-B traffic and UAT & uplink data
  • Meets MOPs of DO-260B & DO-282B
  • Position light meets performance requirements of TSO-C30c Type I
  • Temperature controlled static pressure sensor offers integrated precision accurate up to 80,000 ft
  • Integrated RAIM processor for Security and Integrity protection
  • SBAS corrections and health messages used to detect and correct satellite errors
  • Satellite pseudo range step errors detected and excluded
  • SBAS fast and long-term corrections applied
  • Integrated Wi-Fi to transmit in-flight weather, NEXRAD radar, METARS, TAFs, TFRs, AIRMETs, SIGMETs and NOTAMS to EFB applications

Specifications

  • Weight:
    90 grams
  • Dimensions:
    124 x 116 x 48 mm
  • Input Voltage:
    11 - 31 VDC
  • Operating Power:
    3 watt
  • Operating Temperature:
    -45°C to 80°C
  • Power Transcoder:
    Decodes Mode A & C via DC input
  • 978 MHz UAT Transmitter:
  • Power Classification:
    DO-282B Medium Power
  • WAAS GPS:
  • Tracking:
    -166 dBm
  • Reacquisition:
    -160 dBm
  • Cold Start:
    -148 dBm
  • LED Position Light:
  • Color:
    Aviation Red
  • Intensity:
    40 candelas
  • Weight:
    90 g
  • Dimensions:
    124 x 116 x 48 mm
  • Input Power:
    11 VDC — 31 VDC
  • SIL/SDA:
    2/3
  • Operating Temperature:
    -45°C to 80°C
  • ADS-B Receivers:
  • 1090 Sensitivity:
    -93 dBm
  • 978 Sensitivity:
    -104 dBm
  • GPS:
  • Tracking:
    -166 dBm
  • Reacquisition:
    -160 dBm
  • Cold Star:
    -148dBm
  • LED Position Light:
  • Specification
    Color: Aviation Green
  • Intensity:
    40 candelas
  • Wi-Fi:
  • Specification
    Physical: 802.11b/g/n
  • App Compatibility:
    iOS, Android

Related Products

Product Codes

  • Mfr Part No
    UAX-90117-01
  • ECCN
    7A994
  • SCHEDULE B CODE
    9014.20.8040
  • TSO
    C154c B1S, C145d Beta 1 INCOMP, C88b, C30c Type 1, C96a Class 2
