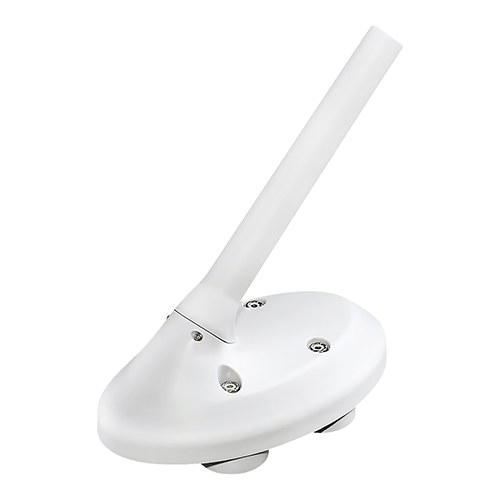

VTU-20 Airport Vehicle ADS-B Transmitter

UAVIONIX

Call For Pricing

Available to order

EDMO # VTU-20

MFR Part # UAX-90043-02

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The VTU-20 is an FAA-approved unit that provides ADS-B to airport vehicles to prevent vehicle runway incursions. It broadcasts surface vehicle movement in real-time to nearby aircraft, other operations vehicles, ATC, and airport management for enhanced situational awareness.

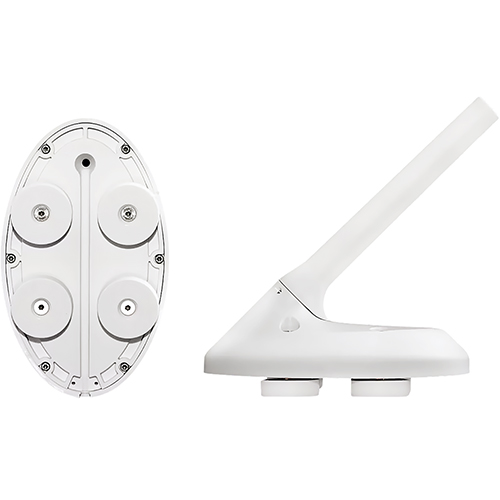

VTU-20’s innovative design ensures easy installation, integration and interoperability with Airport Surface Detection Equipment, Model X (ASDE-X), Airport Surface Surveillance Capability (ASSC), or ADS-B receiver surveillance solutions for airport surface control and situational awareness. The all-in-one external design includes a 20 watt Universal Access Transceiver (UAT) transmitter, internal FAA qualified Global Positioning System (GPS) and antennas. The all-weather housing includes magnetic and bolt-on installation options.

Features

Externally mounted, minimal footprint
FAA approved under U.S. FAA-E-3032, Vehicle (ADSB) Specification
Internally integrated FAA Technical Standard Order (TSO) -C145e Class B1 GPS
Easy PC configuration and squitter map loading for inclusion and exclusion of transmission regions
In-cab control panel for status and manual on/off control
Installation kit options for temporary or permanent mounting, allowing for reuse across seasonal vehicles

Specifications

Dimensions:

134 x 138 x 80 mm
Transmit Message Type:

Identification, Surface Position and Operational Status Messages
Transmit Power:

20 Watts Nominal
Transmit Frequency:

978 MHz
Vehicle ID:

Field configurable
24-bit ICAO ID:

Field configurable
Operating Temperature Range:

-45°C to 80°C
Input Voltage Range:

9 to 32 VDC, 1.5 Watts
Serviceability:

Field upgradable
