UL Triplex Boat Cable | 10 AWG, White/Green/Black, White Jacket | 100ft
PACER
EDMO#: W10/3-100
MFR#: W10/3-100
Description
Triplex boat cable is often used for AC circuits in boats and recreational vehicles. Pacer manufactures 10 AWG triplex cable in Sarasota FL, USA for easy installation and longevity. It begins with finely stranded tinned copper conductors that help to prevent corrosion. At the same time, these conductors allow the cable to be flexible as flexibility is essential when working in enclosed marine spaces.
Another important aspect of 10 AWG triplex boat cable is the insulation. The PVC insulation is manufactured to provide protection from fatigue and moisture. This is achieved during the extrusion process of the insulation. While extruding, Pacer leaves no void between conductors. This eliminates the possibility of moisture or air between the wires.
As an added bonus, talcum powder is coated on the wires. This allows for the easy removal of the jacket during installation. Another reason 10 AWG triplex boat cable is perfect for use with multi-conductor cable connectors.

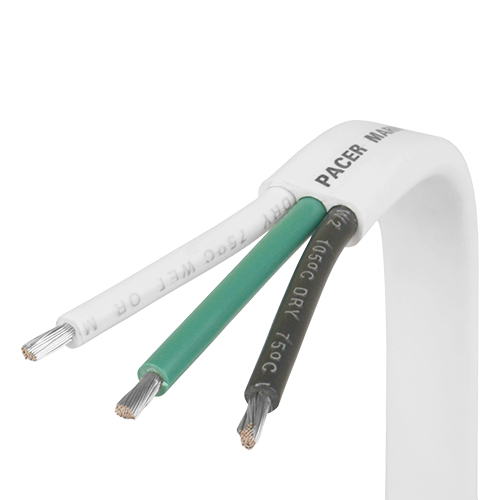

This Triplex Boat Cable (EDMO# W10/3-100) is 10 AWG, has white, green, and black cables with a white jacket, and comes on a 100 ft spool.
Features
- Stranded, tinned copper
- Color coded conductors
- Tough PVC Jacket
- Highly flexible
- Easy to strip and route
Specifications
Conductor:
Annealed Fine Stranded Tinned Copper ASTM B172 Class K
Insulation:
-20° to 105°C Flexible, Color Coded PVC
Temperature Rating:
105 °C Dry, 75 °C Wet, 60 °C Oil
Voltage Rating:
600 V
Resistances:
Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture
Product Codes
Mfr Part No :
W10/3-100
SCHEDULE B CODE :
8544.49.1500
