UL Duplex Boat Cable | 12 AWG, Red/Black, White Jacket | 500ft

Product Description

Duplex Boat Cable is a type of multiconductor cable used in low-voltage AC applications and DC circuits. Pacer manufactures 12 AWG Duplex boat cable in-house in Sarasota FL, USA to guarantee the highest quality. It begins with finely stranded, Type III tinned copper conductors. These conductors allow for maximum flexibility and prevention of corrosion.

The PVC jacket helps 12 AWG Duplex Boat Cable with flexibility and also serves to prevent moisture from building up. How does it achieve this? The voids between wires are filled completely during the extrusion process. This leaves absolutely no room for air or moisture to build up.

To make it even better, a talcum powder coating is applied to the interior wires. This coating will allow the outer jacket to be easily removed. Just another reason 12 AWG Duplex boat cable is perfect for marine usage.

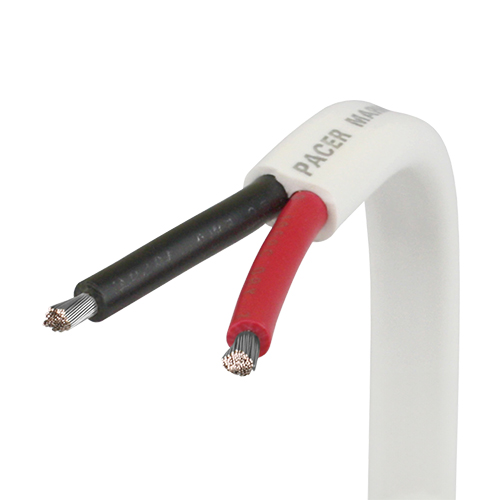

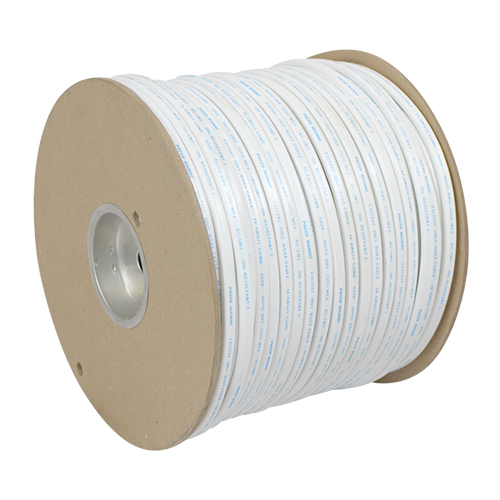

This Duplex Boat Cable (EDMO# W12/2DC500) is 12 AWG, has red and black cables with a white jacket, and comes on a 500 ft spool.

Specifications

• Conductor:
  Annealed Fine Stranded Tinned Copper ASTM B172 Class K
• Insulation:
  -20° to 105°C Flexible, Color Coded PVC
• Temperature Rating:
  105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating:
  600 V
• Resistances:
  Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product Codes

• Mfr Part No
  W12/2DC-500
• SCHEDULE B CODE
  8544.49.1500
