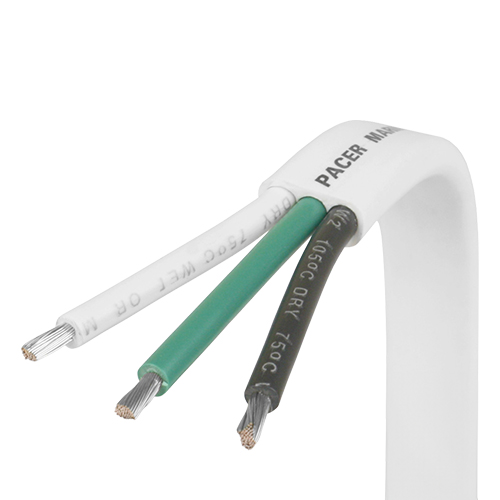

UL Triplex Boat Cable | 16 AWG, White/Green/Black, White Jacket | 100ft

Product Description

16 AWG Triplex boat cable is commonly used for AC circuits in boats and recreational vehicles. It is an ideal choice when looking at flat multiconductor boat cables. Pacer manufactures 16 AWG triplex cable in Sarasota FL USA with a focus on longevity & easy installation. It starts with finely stranded tinned copper conductors. These conductors prevent corrosion and also allow the cable to be flexible.

Another important aspect of 16 AWG triplex boat cable is the insulation. The PVC insulation is designed specifically for protection from moisture and fatigue. The proprietary blend also allows the cable to be extremely flexible. Flexibility is essential when working in enclosed marine spaces.

During the extrusion process, we place emphasis on filling the voids between conductors. This process eliminates any possibility of moisture or air buildup in the wires. To make it even better, talcum powder is coated on the wires. This is done to allow for the easy removal of the jacket during installation. This cable is ideal for use with multiconductor cable connectors.

This Triplex Boat Cable (EDMO# W16/3-100) is 16 AWG, has white, green, and black cables with a white jacket, and comes on a 100 ft spool.

Specifications

• Conductor:
  Annealed Fine Stranded Tinned Copper ASTM B172 Class K
• Insulation:
  -20° to 105°C Flexible, Color Coded PVC
• Temperature Rating:
  105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating:
  600 V
• Resistances:
  Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product Codes

• Mfr Part No
  W16/3-100
• SCHEDULE B CODE
  8544.49.1500
