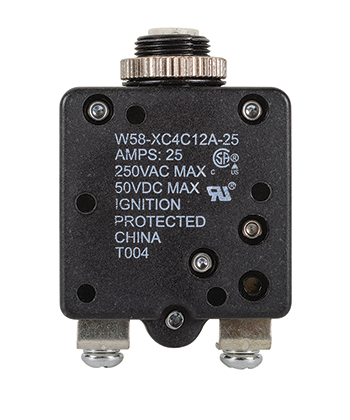

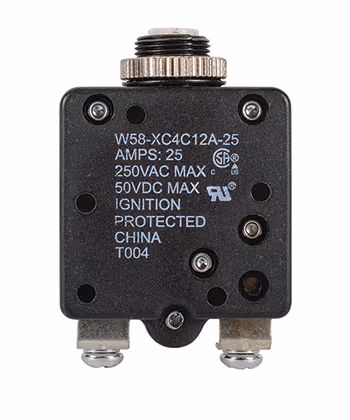

W58 Series Circuit Breaker | 25 Amp Rating, Push Actuator

W58 Series Circuit Breaker | 25 Amp Rating, Push Actuator

TE CONNECTIVITY

Call For Pricing
Available to order
EDMO # W58-25
MFR Part # 4-1393249-4
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The W58 series are secondary panel-mount thermal circuit breakers with a push to reset actuator and series trip function. The thermal type breakers have an interrupt capacity of 2000 amps at 50 VDC and 1000 amps at 250 VAC. The button color has white with black rate marking with a red trip band.

Includes hardware.

Features

  • The W58-XC4C12A-25 circuit breaker (EDMO# W58-25) is rated for 25 amps.
  • Single pole
  • Series trip
  • Cannot be manually tripped
  • Button extends for visual trip indication
  • Push-to-reset operation
  • Screw terminal

Specifications

  • Weight:
    Less than 1 1/2 oz. (42.5g)
  • Vibration:
    Withstands to 10g at 10-55 Hz
  • Mechanical Shock:
    Withstands to 10g
  • Endurance Cycling:
    Over 1,000 cycles at 200% of rated load
  • Dielectric Strength:
    Over 1,500 volts RMS
  • Current Rating:
    25 amps
  • Voltage Rating:
    AC 250V DC 50V
  • Number of Poles:
    1
  • Terminals:
    #6-32 screw terminals

Related Products

Product Codes

  • Mfr Part No
    4-1393249-4
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.20.0020
