UL Duplex Boat Cable | 6 AWG, Red/Black, White Jacket | 50ft

Product Description

Duplex Boat Cable is a type of multi conductor boat cable used in DC circuits as well as low-voltage AC applications. Pacer manufactures 6 AWG Duplex boat cable in-house in Sarasota FL, USA to ensure the highest level of quality. It begins with finely stranded, Type III tinned copper conductors. These conductors allow for maximum flexibility while helping to prevent corrosion.

The PVC jacket helps 6 AWG Duplex Boat Cable with flexibility and prevents moisture or air build-up. How does it do that? Well, during the extrusion process, the voids between wires are completely filled. This leaves no room for air or moisture to accumulate. To make installation easier, a talcum powder coating is applied to the interior wires. This coating allows for easy removal of the outer jacket. Just another reason 6 AWG Duplex boat cable is ideal for marine usage.

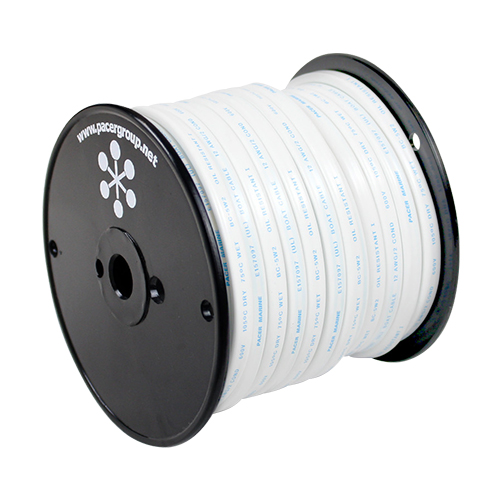

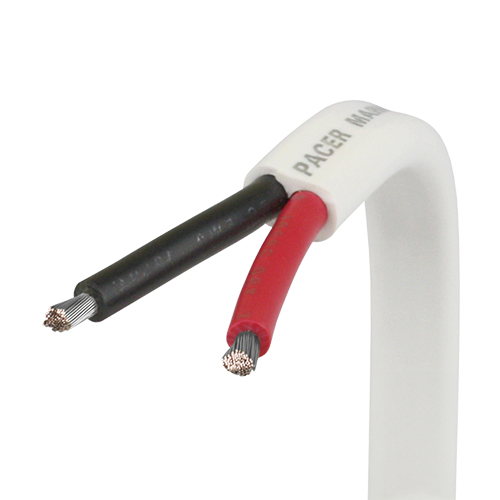

This Duplex Boat Cable (EDMO# W6/2DC-50) is 6 AWG, has red and black cables with a white jacket, and comes on a 50 ft spool.

Specifications

• Conductor:
  Annealed Fine Stranded Tinned Copper ASTM B172 Class K
• Insulation:
  -20° to 105°C Flexible, Color Coded PVC
• Temperature Rating:
  105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating:
  600 V
• Resistances:
  Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product Codes

• Mfr Part No
  W6/2DC-50
• SCHEDULE B CODE
  8544.49.1500
