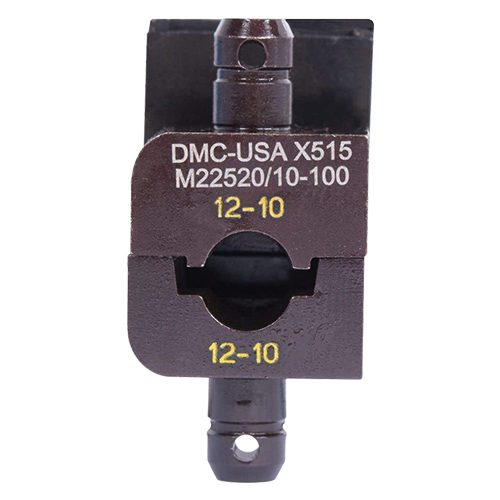

X515 Confined Crescent Die Set | For HX3 Crimp Tool

X515 Confined Crescent Die Set | For HX3 Crimp Tool

DANIELS MFG

Call For Pricing
Available to order
EDMO # X515
MFR Part # X515
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This confined crescent die set (EDMO# X515) is for use with the HX3 crimp tool on 12–10 AWG crimp terminals and splices. M22520/10-100.

Features

  • Confined crescent die set for HX3 crimp tool
  • Accepts 12–10 AWG crimp MS3316 insulated terminals and splices

Specifications

  • Die Type:
    Confined Crescent
  • Crimp Dimensions:
    0.136 in
  • Weight:
    0.16 lbs
  • Die Set Dimensions:
    0.650 x 0.625 x 0.920 in
  • Applicable Gages:
    G261
