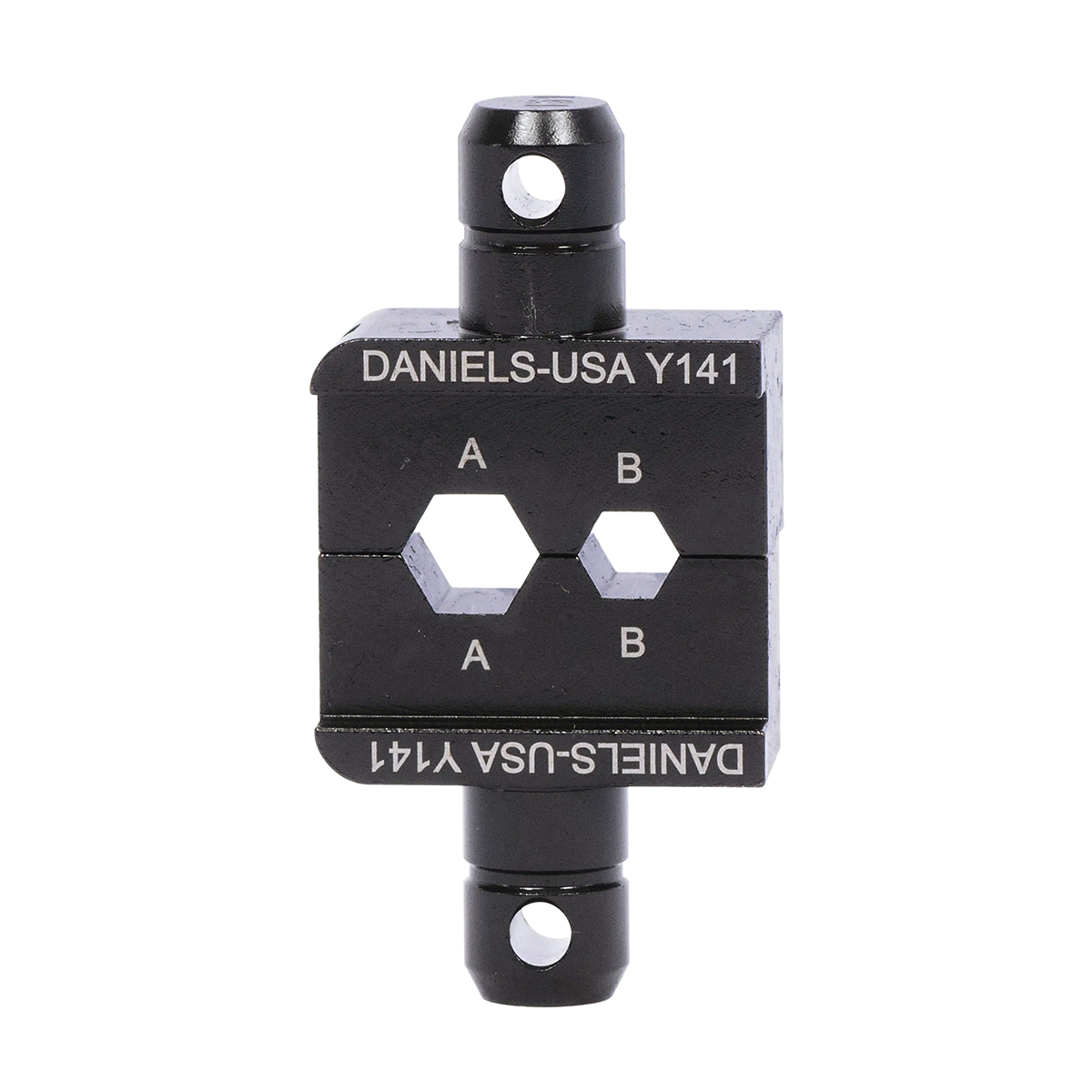

Y141 Y-Die Set | 0.268 & 0.197 Hex

Y141 Y-Die Set | 0.268 & 0.197 Hex

DANIELS MFG

Call For Pricing
Available to order
EDMO # Y141
MFR Part # Y141
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The DMC HX4 Crimp tool features a system of interchangeable dies which eliminate the need of separate fixed die crimp tools for each and every different application. Many maintenance and manufacturing concerns have standardized on this model, thus eliminating the cost associated with maintainaing and calibrating bulky inventories of single purpose tools.

Features

  • Crimp Applications: insulated terminals, uninsulated terminals, splices, coax connectors & HEX, stamped & formed contacts
  • Applicable Gage(s): G193, G189
  • Mil-Spec/AS Qualified

Specifications

  • Die Closure Dimensions:
    A Cavity (Hex): 0.268 in Length: 0.400 B Cavity (Hex): 0.197 in Length: 0.400 in

Related Products

Product Codes

  • Mfr Part No
    Y141
  • ECCN
    EAR99
  • MIL SPEC
    M22520/5-43
  • NSN
    5120-01-335-8269
  • SCHEDULE B CODE
    8203.20.6060
