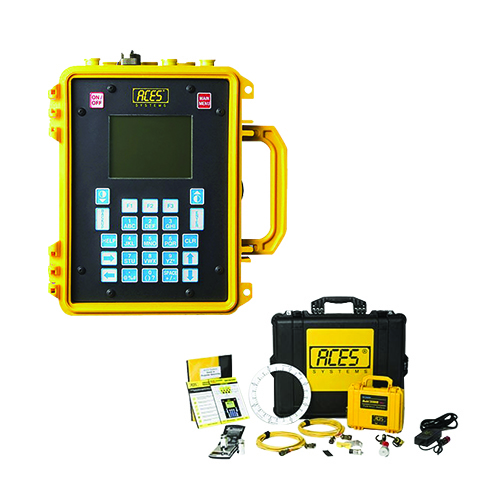

2020HR ProBalancer Analyzer | AvTrend Bronze Software

2020HR ProBalancer Analyzer | AvTrend Bronze Software

ACES SYSTEMS

EDMO#: Z2020HR-AV

MFR#: Z2020HR-PROP-110V

Description

The model 2020HR ProBalancer Analyzer provides step-by-step on-screen instructions for performing propeller balancing, rotor track and balance measurements and vibration surveys. Additionally, users may extend the basic capabilities by defining and saving setup information for common procedures. These can then be recalled later to provide on-screen setup information, consistent procedures and one-shot balance solutions without difficulty of configuring the unit and re-entering data every time.

AvTrend companion software transfers data between all ACES analyzers and a personal computer allowing to display, examine, and print spectral data.

Features

Kit Includes:

  • AvTrend Bronze software
  • Model 2020HR ProBalancer Analyzer
  • 991D-1 Vibration Sensor
  • 25' Vibration Sensor Cable
  • Phototach Speed Sensor
  • 25' Tachometer Sensor Cable
  • Phototach Mount Assembly
  • 1/4 x 28 Vibration Sensor Mount
  • Eight piece case-bolt adapter set
  • Digital Gram Scale
  • Prop Protractor - Full Circle
  • Battery Charger
  • Pocket Pro Tackle Box
  • Communications / Printer Cable
  • Training Video
  • Carrying Case
  • User's Manual
  • FAA-Approved ACES Guide to Propeller Balancing

Features:

  • Dynamic propeller balancing
  • Vibration Surveys and Spectrum Analysis
  • Graphic spectral display with curser, expanded views, and backlight
  • Duel channel, simultaneous inputs
  • Maintains prior influences to compute one-shot balance
  • Programmable propeller balance influences Split weights to existing holes (available with EPS)
  • Supports multiple sensor types Powered by rechargeable batteries or by aircraft power

Specifications

Weight:
4.8 lb

Dimensions:
9.3 x 7.5 x 4.4 in

Accuracy:
Vibration Amplitude: +/- 5%, 0 - 10 IPS
Frequency Range: 0 - 10K Hz
Tachometer Inputs: +/- .3%, 100 - 10,000 rpm

Power Supply:
Camcorder Type Battery Model RB 85 or Equivalent
(12V, 2.3 A hour internal lead acid battery)

Operation Time:
Up to 10-12 hours

Voltage:
12 V DC Battery or 14-28 V DC ships power

Charging Time:
2 hours

Product Codes

Mfr Part No :

Z2020HR-PROP-110V
