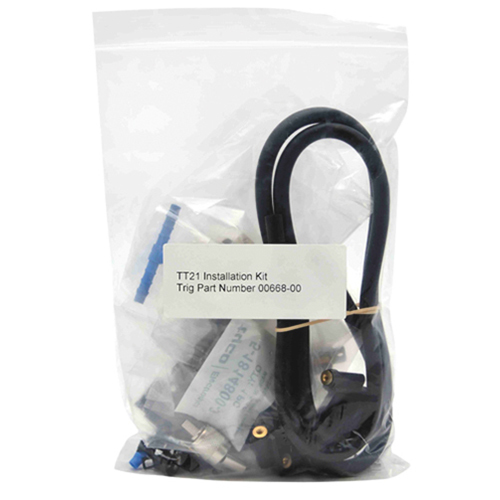

TT21 & TT22 Remote Transponder Installation Kit

TT21 & TT22 Remote Transponder Installation Kit

TRIG AVIONICS

Call For Pricing
In stock
EDMO # 00668-00
MFR Part # 00668-00
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This installation kit (EDMO# 00668-00) is for use with the TT21 and TT22 Mode S transponders. Remote transponder units can be mounted anywhere in the airframe saving panel space.

Features

  • Includes:
  • (1) TT21/TT22 Transponder Installation Manual
  • (1) TT21/TT22 Pilots Operating Manual
  • (2) Mounting adapter (circular hole adapter)
  • (1) Connector Co-axial TNC
  • (1) Headshell, 9 Way
  • (1) Headshell, 25 way
  • (1) 9 way D-type contact housing (female)
  • (1) 25 way D-type contact housing (male)
  • (20) Crimp Terminal, Male, 22-24 AWG
  • (9) Crimp Terminal, Female, 22-24 AWG
  • (1) Static tubing, EPDM 5mm ID
  • (1) Hose T piece
  • (2) Hose Adapter
  • (6) Hose clip, small
  • (2) Hose clip, large
  • (4) Long mounting screws, 4-40 thread
  • (4) Short mounting screws, 4-40 thread

Also Purchased

Related Products

Product Codes

  • Mfr Part No
    00668-00
  • ECCN
    7A994
  • SCHEDULE B CODE
    8803.90.9010
