TA12 Transponder Antenna | 1,030—1,090 MHz, Rod Type


TRIG AVIONICS

Call For Pricing
In stock
EDMO # 02450-00
MFR Part # 02450-00
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

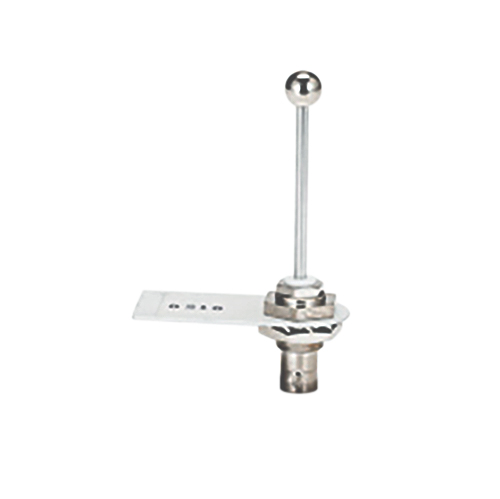

The TA12 certified transponder antenna features a lightweight and compact rod design optimized to preform with Trig transponders. This transponder antenna is ideal for general aviation and high performance aircraft up to 350 mph and 50,000 feet. Simple installation requires only a small hole in the aircraft surface and includes an installation kit, installation guide, and FAA 8130 certification.

Features

  • Designed to work with Trig transponders
  • Ideal for most general aviation aircraft, including high performing, up to 350 mph and 50,000 feet
  • Certified to FAA TSO C74c
  • Lightweight & discreet design
  • Includes installation kit

Also Purchased

Specifications

  • Weight:
    1 oz (28 g)
  • Antenna Type:
    transponder
  • Frequency Range:
    1,030 MHz — 1,090 MHz
  • Impedance:
    50Ω, nominal
  • VSWR:
    1.3:1, maximum
  • Polarization:
    vertical
  • Pattern:
    omni-directional
  • Connector:
    BNC (female)
  • RF Power:
    1.0 kW, peak @ 1% duty cycle
  • Includes:
    installation kit installation guide FAA8130 certification/approval

Related Products

Product Codes

  • Mfr Part No
    02450-00
  • SCHEDULE B CODE
    8529.10.4000
