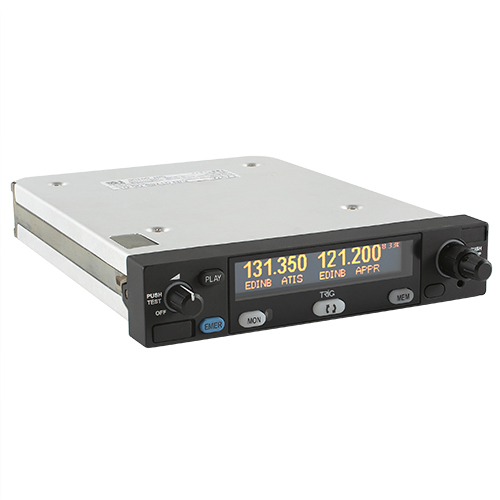

TY96 VHF Transceiver Stack Radio | 10W, 8.33 kHz

TY96 VHF Transceiver Stack Radio | 10W, 8.33 kHz

TRIG AVIONICS

Call for pricing
Out of stock
EDMO # 01227-0001
MFR Part # 01227-00-01
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TY96 8.33 kHz channel panel mount stack radio is packed with pilot friendly features. The 'Push Step' knob allows the fastest change from 8.33 kHz to 25 kHz airband frequencies. The radio provides crisp and clear stereo communication, faster tuning, a unique programmable USB database, dual watch and popular ‘Say Again’ feature. At only 1.3” high the radio saves valuable stack space and weight. Trig’s stack radios are designed for both general and light-sport aviation, with features that experienced and novice pilots really appreciate.

Version TY96 (EDMO# 01227-0001) has a 10 watt nominal power output with a 8.33 khz capable radio configuration required in Europe.

Features

  • 8.33 kHz channel spacing (required in Europe)
  • 11-33 V, 10 watt
  • Slimline panel mount – only 1.3” high
  • Bright, clear display / simple user interface
  • Unique ‘Push Step’ for faster tuning 8.33 kHz to 25 kHz
  • Dual Watch – monitor two frequencies at the same time
  • ETSO and TSO approved
  • Stereo music / two place intercom
  • ‘Say Again’ feature – allows playback of last transmission
  • Emergency button
  • Configurable airfield database – holds over 200 frequencies
  • USB port on facia – upload frequency database (CSV file)
  • Highly efficient – no cooling fans or external cooling required
  • Ideal retro-fit for legacy radios - same height as an SL40
  • GPS / EFIS compatibility (includes SL40 protocol and Garmin GTR255)
  • Two year warranty from date of install, U.S. based technical support

Also Purchased

Specifications

  • Weight:
    0.95 kg/2.09 lb
  • Dimensions:
    1.3 x 6.26 x 10.63 in (33 x W 159 x L 270 mm)
  • Installed Depth in Tray:
    9.05 in
  • Supply Voltage:
    11 VDC — 33 VDC
  • Typical Current Consumption:
    175 mA @ 14 VDC
  • Nominal Transmitter Power:
    10 Watt, nominal
  • Type:
    8.33 kHz - 25 kHz
  • Operating Temperature:
    -20°C to 55°C
  • Cooling Requirement:
    No fan required
  • Certification:
    ETSO 2C128, 2C169a, TSO-C128a TSO-C169a
  • Compliance:
    ED-23C, ED-67, DO-186B, DO-178B Level B, DO-160G, DO-254 Level C

Related Products

Product Codes

  • Mfr Part No
    01227-00-01
  • ECCN
    7A994
  • ETSO
    2C128, 2C169a
  • SCHEDULE B CODE
    8525.60.1055
  • TSO
    C128a, c169a
