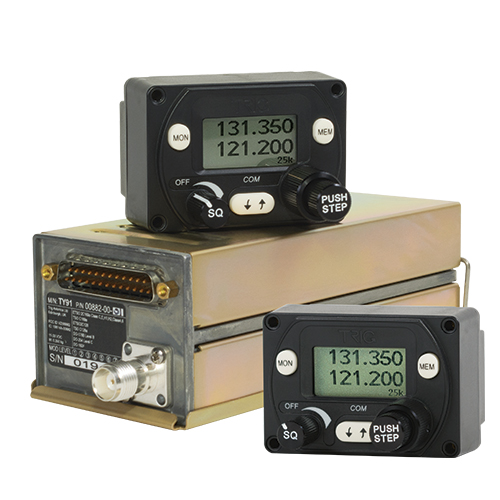

TY91 VHF Transceiver | Dual Control

TRIG AVIONICS

Call For Pricing

In stock

EDMO # 01451-00

MFR Part # 01451-00

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TY91 is a TSO certified 25 kHz/8.33 kHz VHF radio that is compact and lightweight — ideal for panels with limited space. The TY91 has a six-watt power output and is designed for light sport, ultra light, glider and balloon pilots, and most general aviation users who require the lower six-watt power requirement.

In addition, this version of the TY91 (EDMO# 01451-00) features a Dual Control Kit that allows two radio controllers to integrate with a single Trig radio hardware box; this configuration is ideal for training and flight school use.

Features

Includes a built-in speaker amplifier and two place intercom
Easily operable with gloves
Compact and lightweight offers flexible installation options
8.33 and 25 kHz channel spacing
Push Step feature provides fast frequency selection
Monitor two frequencies at the same time with the dual watch function
Manual dimming feature
Dual controller option allows for two controllers to used in aircrafts with tandem cockpits
Low power consumption
6 watts nominal output
Simple installation
EASA ETSO and FAA TSO certification

Also Purchased

Specifications

Weight:

1.01 lb
Dimensions:

Controller: 1.73 x 2.48 x 1.37 in Radio unit: 1.88 x 2.59 x 6.29 in
Type:

Receiver: Class C, Class E Transmitter: Class 4, Class 6
Supply Voltage:

11 – 33 VDC
Typical Current Consumption:

Receive: 200 mA transmit: 2A
Operating Temperature:

Radio unit: -40 °C to + 70 °C Controller: -20 °C to +70 °C
Nominal Transmitter Power:

6 watt
Certification:

ETSO-2C169a, ETSO-2C128, TSO-C169a, TSO-C128a
Compliance:

ED-23C, ED-67, DO-186B, DO-178B Level B, DO-160F, DO-254 Level C
