TT21/TN72 Conspicuity Bundle | With TA50 Antenna

TT21 Mode S Class 2 Compact Transponder | Complete Kit

TRIG AVIONICS

Call For Pricing

Available to order

EDMO # 02375-00

MFR Part # 02375-00

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TT21/TN72 Conspicuity Bundle (EDMO# 02375-00) is ideal for flight below 15,000 feet where a Class 2 transponder is permissible for Mode S and ADS-B Out. The TN72 and TT21 in combination can be configured to either support TABS (SIL 1) or X configuration (SIL3) in the controller. This bundle also includes the TA50 compact antenna with 1m lead and QMA connector that plugs into the TN72.

Features

TT21:
Class 2 Mode S and 1090ES ADS-B Out capable
130 watts nominal output power
Compact form factor – fits in a compact or standard 2-1/4 inch instrument hole
Minimal depth – create space in your panel for other avionics
One handed operation
Single press VFR button
Rapid Squawk selection
Display features tail number and flight level for reference
Integrated altitude encoder
Certified for IFR / VFR flight
Manual dimming feature (adjustable backlight)
Splash proof, ideal for open cockpit and seaplane
Low power consumption
FAA TSO Certification – TSO-C166b the latest ADS-B standard
Free FAA ADS-B STC for 576 aircraft types
Two year warranty from date of install, U.S. based technical support
TN72:
Simple ADS-B Out upgrade to Trig transponders
Suitable for experimental, light-sport, and home-built aircraft
Ideal for experimental gliders — allowing flight in 2020 rule airspace
Enables live tracking of aircraft with suitable ADS-B In equipment
Triggers traffic information services (TIS-B only available in U.S.)
Two year warranty from date of install, U.S. based technical support
TA50:
Optimized to be used as a GPS position source
Lightweight and easy plug-in-play installation
Weatherproof
Can be paired with The TN72 GPS receivers from Trig
Meets FAR 91.227 when used with TN72
Complete with a secure and reliable QMA connector

Specifications

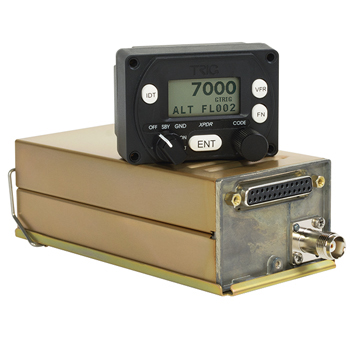

TT21 MODE S CLASS 2 COMPACT TRANSPONDER:
Weight:

0.8 lb
Dimensions controller:

1.8 x 2.4 x 2.1 in (44 x 63 x 54 mm)
Dimensions transponder in tray:

1.8 x 2.6 x 6.2 in (48 x 68 x 160 mm)
Type:

Transponder Class 2 Mode S level 2els ADS-B Class B0
FAA 2020 ADS-B airspace compliant capable:

No
Supply Voltage:

9 VDC –33 VDC
Typical consumption (at 14v):

Idle: 0.15 A active: 0.28 A
Nominal Transmitter Power:

130 W at connector
Operating Temperature:

Transponder: -40°C to 70°C Controller: -25°C to 70°C
Cooling Requirement:

No fan required
Compliance:

ETSO 2C112b Class 2 Level 2els, ETSO C166a Class B0, TSO C112c Class 2 Level 2els, TSO C166b Class B0
FCC Identification:

VZI00675
Applicable Documents:

EUROCAE ED-73C, EUROCAE ED-14F (RTCA DO-160F), RTCA DO-181D, RTCA DO-260B
Software:

ED-12B (RTCA DO-178B) Level B
Hardware:

DO-254 Level C

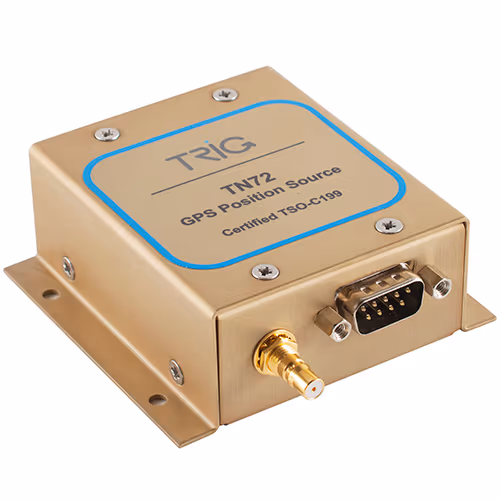

TN72 GPS POSITION SOURCE RECEIVER:
Weight:

3.8 oz
Dimensions:

1.2 x 3.6 x 2.5 in
Type:

TABS GNSS
Supply Voltage:

11 VDC – 33 VDC
Typical Current Consumption:

0.1 amp @ 14 volts
Operating Temperature:

-40°C to 70°C
Connector:

GPS (power, ground and GPS data): nine-way, D-type Antenna: 5-volt phantom power, QMA male
Certification:

TSO-C199 Class
Compliance:

DO-160G
TA50 COMPACT GPS ANTENNA:
Specification

Dimensions (GPS Unit without cable): 23 x 26 x 12 mm
Connector Type:

QMA
Cable Length:

1 meter (39 in)
Frequency:

1,575.42 ±3 MHz
Antenna Gain:

>1 dBiC
VSWR:

1.5:1
Filtering:

-20 dB, minimum, ±50 MHz
Noise Figure:

1.5 dB, maximum
Gain:

26 dB
DC Power Requirements:

3 VDC — 5 VDC
Temperature:

-40°C to 85°C
