TT23G Mode-S Transponder Complete System | Includes TA70 Antenna, ADS-B Capable

TRIG AVIONICS

Call For Pricing

In stock

EDMO # 02647-00

MFR Part # 02647-00

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Trig TT23 and TT23G units are the next evolution in Trig compact Transponders; trusted by pilots worldwide for their reliability and innovative design. These units include built-in GPS and have a reduced size and wight. The TT23 easily fits into the tightest panel space while maximizing cockpit real estate.

This class 1 Mode-S transponder is certified for both VFR and IFR flight while providing 250 watts of output power — ensuring visibility to commercial, military, and general aviation traffic. ADS-B compatibility makes the TT23 future-proof while enhancing visibility and flight safety.

The TT23 Transponder can be paired with GPS units like the TN70 or TN70A and other third-party GPS sources for ADS-B out. When coupled with an appropriate GPS, the TT23 is suitable for certified aircraft to meet the United States requirements — suitable for pilots around the globe.

The TT23G features built-in GPS and certified to ETSO-C199 standards for the ideal choice of pilots seeking an integrated ADS-B Out solution, and is suitable for experimental and light sport aircraft.

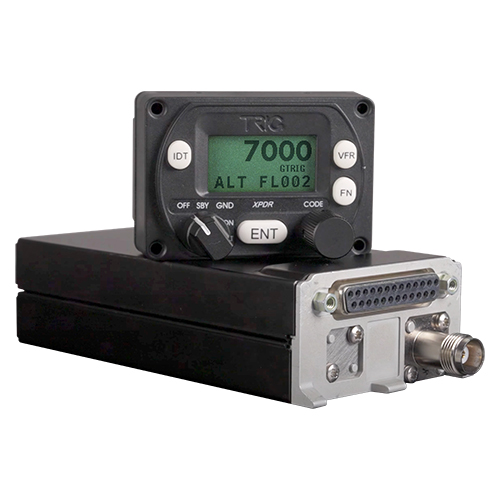

This TT23G ADS-B Bundle (EDMO: 02647-00) includes the TT23G transponder unit, TC20 control head, and TA70 antenna.

Features

Compact form factor — fits in a compact or standard 57mm instrument hole
Minimal depth – maximize limited behind the panel
Integrated altitude encoder
The TT23G with built-in internal GPS sensor and certified to ETSO-C199
Certified for IFR/VFR flight
Manual dimming (adjustable backlight)
Low power consumption
EASA ETSO and FAA TSO certification
Includes TSO-C166b the latest ADS-B standard
Free European Minor Change approvals
STC approval pending

Also Purchased

Specifications

Weight:

0.69 lb (315g), TT23 box 0.19 lb (90 g), TC20 controller Dimensions: 1.5 x 2.6 x 5.9 in (37 x 64 x 149 mm), transponder with tray 1.8 x 2.4 x 2.1 in (44 x 63 x 54 mm), controller Transponder Type: Class 1 Mode S level 2els ADS-B Class B1S Certification: ETSO C88a, C112e, 2C112b, C166b, C199 TSO C88b, C112c, approved for IFR and VFR flight Compliance: ED-73E, ED-14G, DO-160G, DO-260B, DO-178C, DO-178B, DO-254 Level C Supply Voltage: 11VDC — 33VDC Typical Consumption (@14V): Idle: 0.15A active: 0.34 A Nominal Transmitter Power: 250W at connector Operating Temperature: -40°C to 70°C (transponder) -20°C to 55°C (controller) Cooling Requirement: no fan required
