EG2 Engraver for Panel Pro

EG2 Engraver for Panel Pro

BULLER ENTERPRISES

Call For Pricing
Available to order
EDMO # 1-0072-0
MFR Part # 1-0072-0
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

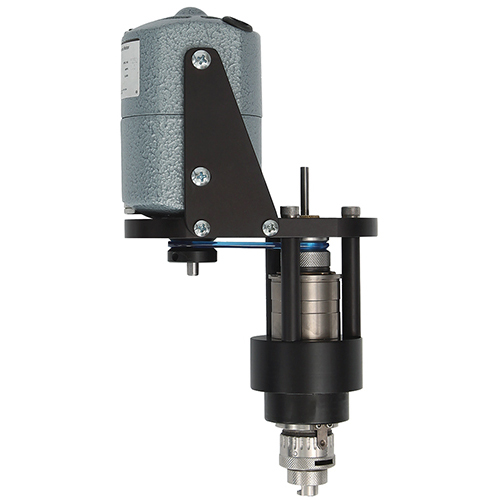

The EG2 engraving accessory expands the capabilities of any model of the Panel Pro. It has the precision to engrave through a top layer of paint revealing a colored sub layer. With this accessory, you can engrave placards, circuit breaker panels or directly on the surface of an instrument panel. The EG2 consists of a precision spindle assembly with a replaceable nose that can be adjusted in 0.001 increments.

Features

  • Includes:
  • Engraver assembly
  • (1) 0.010 tip width cutter
  • (1) 7/16 inch diameter steel nose
  • (2) 2-1/4 inch diameter Delrin nose piece
  • Features:
  • Adjustable/replaceable nose
  • Mated to heavy duty ball bearing motor
  • Top load design allows cutter to be changed without disturbing the EG2
  • Micrometer adjustment assures precise .001 inch adjustments
  • Spindle and cutter combination assures precise rotation

Also Purchased

Specifications

  • Weight:
    5 lb
  • Dimensions:
    12 x 6 x 4 in

Related Products

Product Codes

  • Mfr Part No
    1-0072-0
  • ECCN
    2B991
  • SCHEDULE B CODE
    8459.61.0080
